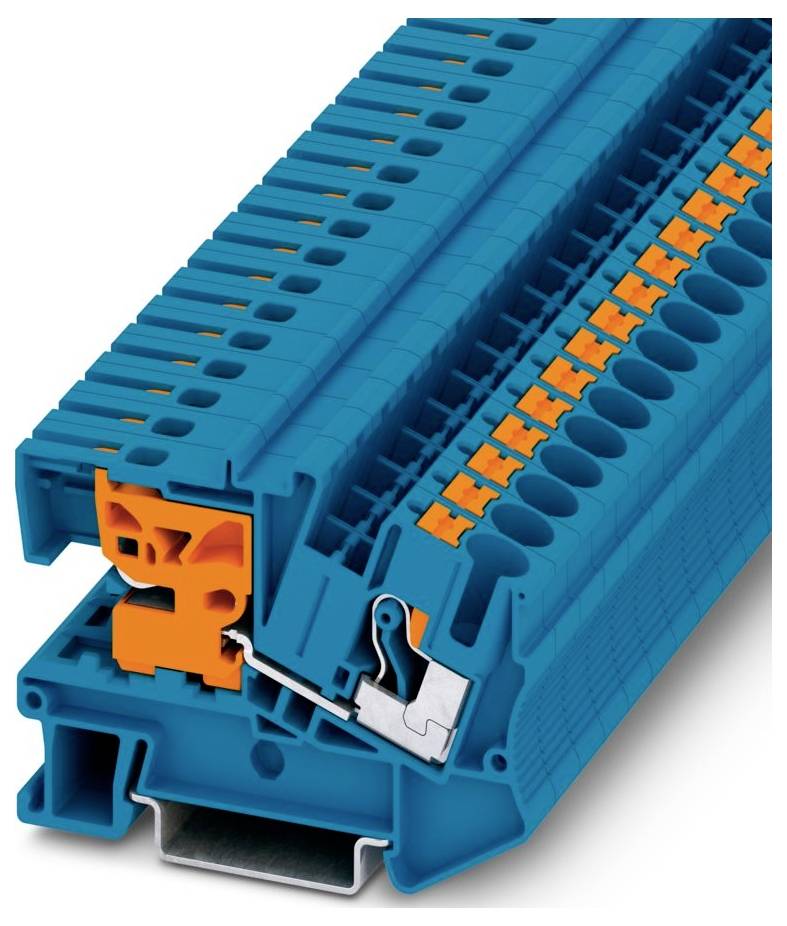

Image similar
Phoenix Contact 3213967 N terminal Push-in connector Configuration: N Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details
- PTN 6
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Connection
Push-in connector
- Configuration
N
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Manufacturer part #
3213967
- Content
50 pc(s)
- Type
PTN 6
- Dim
(W x H x D) 8.2 x 66.3 x 48.5 mm
- Width
8.2 mm
- Height
66.3 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Depth
48.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3581517 Phoenix Contact 3213967 N terminal Push-in connector Configuration: N Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3581517 Phoenix Contact 3213967 N terminal Push-in connector Configuration: N Blue 50 pc(s) Piece
