Buy Phoenix Contact 3240086 Ring terminal Cross section (max.)=6 mm² Hole Ø=8.4 mm Not insulated Silver 50 pc(s)

Metallic cable lug end piece with a round ring, suitable for twisting cables and connecting to screw terminals.

Three silver cable lugs of different sizes are arranged side by side. They have a hole at the upper end for attachment.

Technical drawing of a component with dimensions: length 'b', width 'f', bore 'd', with an L-shaped cross-section.

1/3

Image similar

Datasheet (PDF)

8 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 50 pc(s))

Set(s)

Total (€ 10.92 / piece)

€

Only 8 Set(s) available

Report legal concerns

Highlights & Details

Ring cable lug

2.6 - 6 mm²

Technical specifications

Length: 26 mm
Width: 14 mm
Insulation sleeve length 6 mm
Inner dimensions of insulation collar: 3.6 mm
Material thickness 1 mm
Wire stripping length: 9 mm

Manufacturer part #: 3240086

Type: C-RC 6/M8 DIN

max. cross section: 6 mm²

Min. cross section: 2.6 mm²

Content: 50 pc(s)

Factory colour: Silver

Cross-section range: 2.6 - 6 mm²

Insulation type: Not insulated

Thread size: M8

Hole Ø: 8.4 mm

Contact material: Copper silver plated

Product type: Ring terminal

Documents & Downloads

Datasheet

Datasheet 2225945 Phoenix Contact 3240086 Ring terminal Cross section (max.)=6 mm² Hole Ø=8.4 mm Not insulated Silver 50 pc(s)

User & Safety Instructions

User & Safety Instructions 2225945 Phoenix Contact 3240086 Ring terminal Cross section (max.)=6 mm² Hole Ø=8.4 mm Not insulated Silver 50 pc(s)

Description

The hard soldered press zone enables highest conductor extraction values. The ring terminals without plastic sleeve are made of high-quality electrolytic copper with galvanic tin plating for maximum corrosion protection.

This text is machine translated.

More interesting products

(^*All information is plus legal VAT)

-55%

TRU COMPONENTS 1583107 Ring terminal Cross section (max.)=6 mm² Hole Ø=8.40 mm Partially insulated Yellow 1 pc(s)

Conrad Electronic

€ 0.42

€ 0.19^*

-54%

TRU COMPONENTS 1582976 Ring terminal Cross section (max.)=6 mm² Hole Ø=10.50 mm Partially insulated Yellow 1 pc(s)

Conrad Electronic

€ 0.52

€ 0.24^*

-46%

TRU COMPONENTS 1582991 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=6 mm Not insulated Metal 1 pc(s)

Conrad Electronic

€ 0.28

€ 0.15^*

TRU COMPONENTS 1583000 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=5.30 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.09^*

-55%

TRU COMPONENTS 1583068 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=6.50 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.29

€ 0.13^*

TRU COMPONENTS 1583067 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=4.30 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.11^*

TRU COMPONENTS 1583006 Ring terminal Cross section (max.)=1.50 mm² Hole Ø=6 mm Not insulated Metal 1 pc(s)

Conrad Electronic

€ 0.11^*

-52%

TRU COMPONENTS 1583065 Ring terminal Cross section (max.)=1.50 mm² Hole Ø=8.40 mm Partially insulated Red 1 pc(s)

Conrad Electronic

€ 0.25

€ 0.12^*

-54%

TRU COMPONENTS 1583071 Ring terminal Cross section (max.)=6 mm² Hole Ø=6.50 mm Partially insulated Yellow 1 pc(s)

Conrad Electronic

€ 0.37

€ 0.17^*

-50%

TRU COMPONENTS 1583105 Ring terminal Cross section (max.)=1.50 mm² Hole Ø=6.50 mm Partially insulated Red 1 pc(s)

Conrad Electronic

€ 0.24

€ 0.12^*

-55%

TRU COMPONENTS 1583001 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=8.40 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.29

€ 0.13^*

Phoenix Contact 3240095 Ring terminal Cross section (max.)=16 mm² Hole Ø=6.5 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 47.05^*

TRU COMPONENTS 746048 Ring terminal Cross section (max.)=1.50 mm² Hole Ø=4.3 mm Partially insulated Red 100 pc(s)

Conrad Electronic

€ 6.29^*

-53%

TRU COMPONENTS 1583002 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=10.50 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.32

€ 0.15^*

-17%

TRU COMPONENTS 1583122 Ring terminal Cross section (max.)=6 mm² Hole Ø=5 mm Not insulated Metal 1 pc(s)

Conrad Electronic

€ 0.23

€ 0.19^*

-44%

TRU COMPONENTS 1583106 Ring terminal Cross section (max.)=1.50 mm² Hole Ø=13 mm Partially insulated Red 1 pc(s)

Conrad Electronic

€ 0.52

€ 0.29^*

-36%

TRU COMPONENTS 1583114 Ring terminal + heatshrink Cross section (max.)=6 mm² Partially insulated Yellow 1 pc(s)

Conrad Electronic

€ 0.83

€ 0.53^*

TRU COMPONENTS 746750 Ring terminal Cross section (max.)=6 mm² Hole Ø=8.4 mm Partially insulated Yellow 50 pc(s)

Conrad Electronic

€ 6.29^*

-45%

TRU COMPONENTS 1583069 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=13 mm Partially insulated Blue 1 pc(s)

Conrad Electronic

€ 0.53

€ 0.29^*

-39%

TRU COMPONENTS 1583113 Ring terminal + heatshrink Cross section (max.)=6 mm² Partially insulated Yellow 1 pc(s)

Conrad Electronic

€ 0.75

€ 0.46^*

Phoenix Contact 3240081 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 16.80^*

Phoenix Contact 3240072 Ring terminal Cross section (max.)=1 mm² Hole Ø=4.3 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 10.92^*

Phoenix Contact 3240080 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=6.5 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 15.12^*

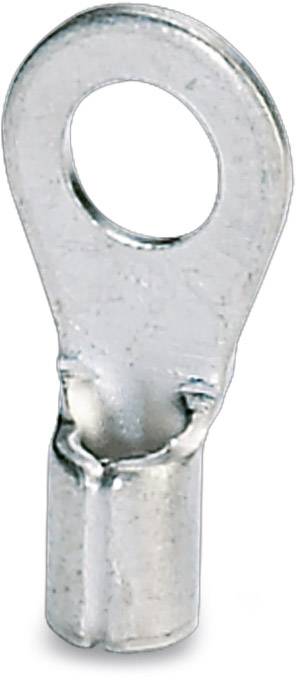

Phoenix Contact 3240069 Ring terminal Cross section (max.)=1 mm² Hole Ø=2.8 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 10.92^*

Phoenix Contact 3240075 Ring terminal Cross section (max.)=1 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 15.96^*

Phoenix Contact 3240070 Ring terminal Cross section (max.)=1 mm² Hole Ø=3.2 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 10.92^*

Phoenix Contact 3240096 Ring terminal Cross section (max.)=16 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s)

Conrad Electronic

€ 48.73^*

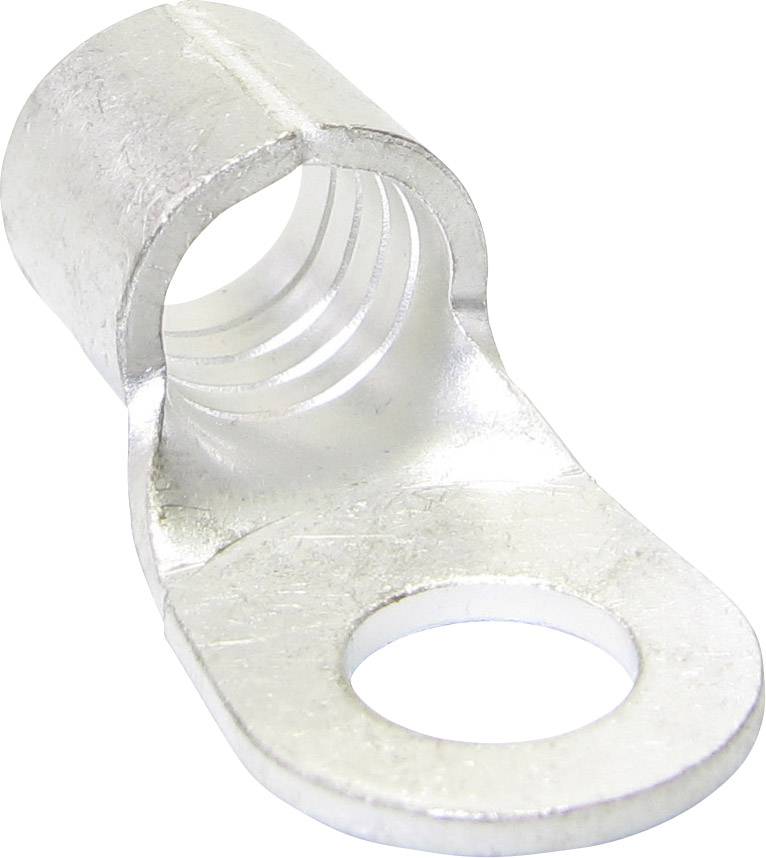

TRU COMPONENTS 1583098 Ring terminal Cross section (max.)=35 mm² Hole Ø=8 mm Not insulated Metal 1 pc(s)
