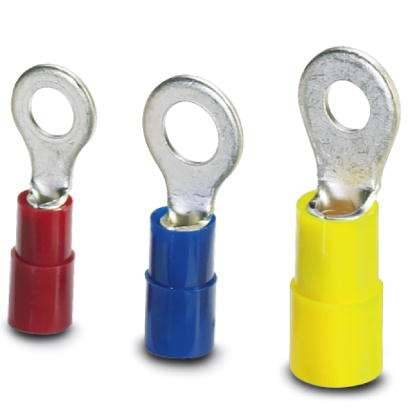

Image similar

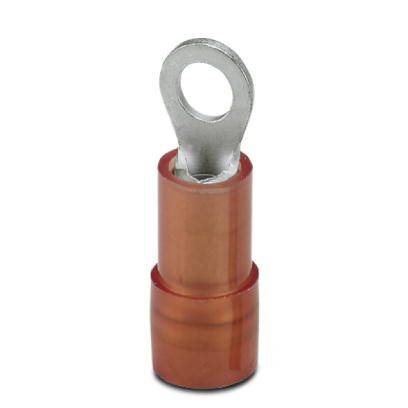

Phoenix Contact 3241201 Ring terminal Cross section (max.)=1.5 mm² Hole Ø=3.2 mm Partially insulated Red 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ring terminal
Thread size
M3
Hole Ø
3.2 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Ring cable lug
- 0.5 - 1.5 mm²

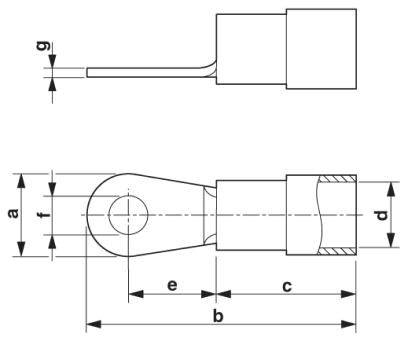

Technical specifications
- Length: 17.7 mm
- Width 5.5 mm
- Length of insulating sleeve 11 mm
- Inner dimensions of insulating collar: 4.1 mm
- Material thickness 0.75 mm
- Ingredients: Halogen-free
- Flammability class according to UL 94: V2
- Product type
Ring terminal
- Thread size
M3
- Hole Ø
3.2 mm
- Insulation type
Partially insulated
- Factory colour
Red
- Content
100 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
3241201
- Type
C-RCEI 1,5/M3
- max. cross section
1.5 mm²
- Min. cross section
0.5 mm²
- Insulation material
PA
- Cross-section range
0.5 - 1.5 mm²
- Temperature range
-20 °C - 105 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225999 Phoenix Contact 3241201 Ring terminal Cross section (max.)=1.5 mm² Hole Ø=3.2 mm Partially insulated Red 100 pc(s)
Datasheet 2225999 Phoenix Contact 3241201 Ring terminal Cross section (max.)=1.5 mm² Hole Ø=3.2 mm Partially insulated Red 100 pc(s)
User & Safety Instructions
User & Safety Instructions 2225999 Phoenix Contact 3241201 Ring terminal Cross section (max.)=1.5 mm² Hole Ø=3.2 mm Partially insulated Red 100 pc(s)
Description
The sleeves are tapered to allow easy and correct insertion of the conductor. The additional copper sleeve (insulation crimp) increases the mechanical load capacity of the connection considerably.
