Phoenix Contact AXL F AI8 W 1F 2702525 I/O module

'Modular electrical connection module with multiple orange and black terminals, alongside a black adapter plug.'

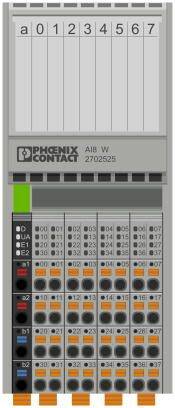

'Illustration of a Phoenix Contact AI8 W 2702525 module with eight numbered connections and LED status indicator for signal monitoring'
'Schematic representation of an electronic circuit with connections to multiple components and a 24V power source.'

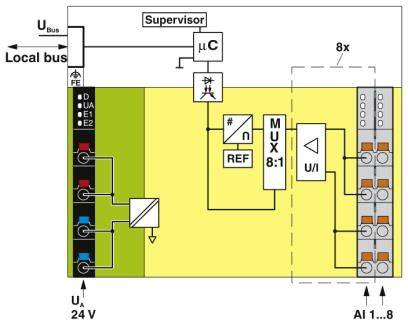

Diagram of an electronic circuit for signal processing with block elements: Supervisor, Multiplexer, Amplifier and Interface Modules.

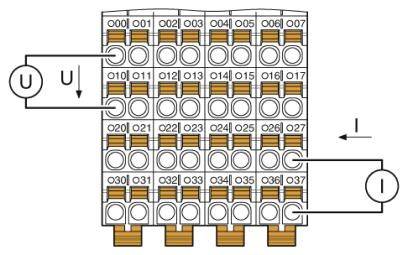

'Block terminal diagram with labelled terminals for voltage (U) and current (I), showing arrangement and electrical connection points.'

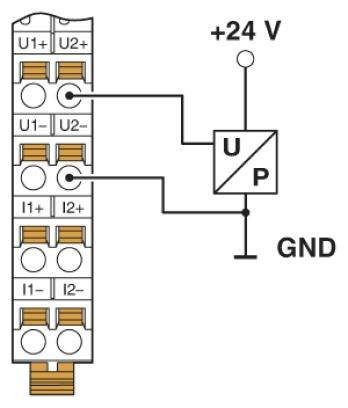

Diagram of an electrical circuit: On the left, a terminal block with six connections. On the right: Voltage (U) and power (P) at +24 V and GND.

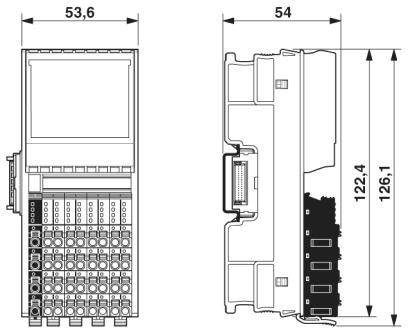

'Drawing of an electronic module with dimensions: width 53.6 mm versus 54 mm and height 122.4 mm to 126.1 mm.'

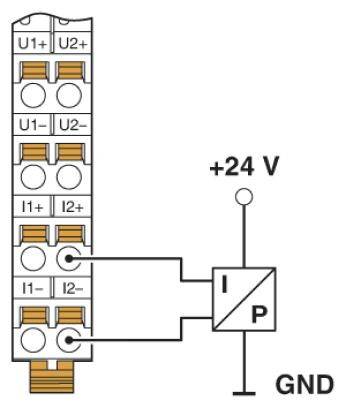

Schematic of an electrical terminal block with 24 V voltage and ground ('GND'). Connections marked as 'U1-', 'U2+', 'I1+', 'I2-' etc.
1/8
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

I/O module

Type

AXL F AI8 W 1F

No. of analogue inputs

8

Connection method

2-core

Manufacturer part #

2702525

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2136865 Phoenix Contact AXL F AI8 W 1F 2702525 I/O module

User & Safety Instructions

User & Safety Instructions 2136865 Phoenix Contact AXL F AI8 W 1F 2702525 I/O module

Description

Axioline F, analogue input module, analogue inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-wire, transmission speed in local bus: 100 MBit/s, for SAFE AI applications with service-free continuous operation, protection class: IP20, including socket module and Axioline F-plugs
