Phoenix Contact AXL F DO32/1 2H 1004925 I/O module 5 V DC

Electronic components with connectors and modules on a mounting bracket, used for industrial electrical connections and controls.

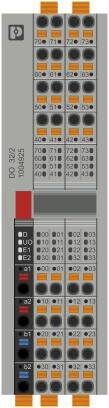

'EL2022' terminal with two digital outputs, connected to 'E1' and 'E2'. LEDs indicate status: 'E1' on, 'E2' off.

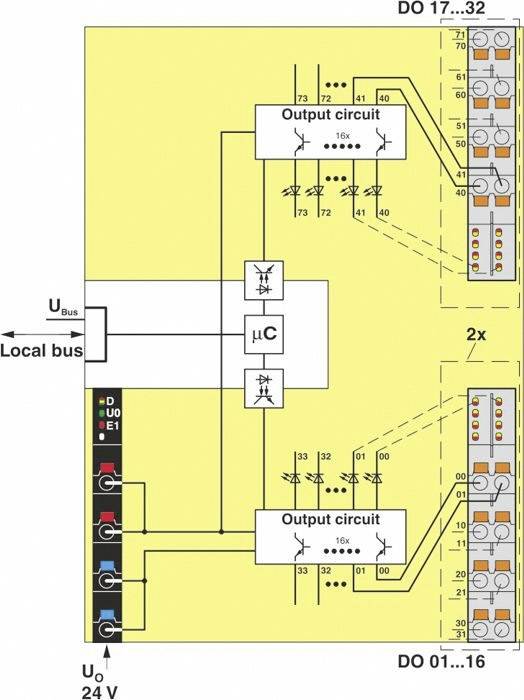

Circuit diagram shows two output circuits, controlled by a microcontroller, connected with local bus and DO interfaces.

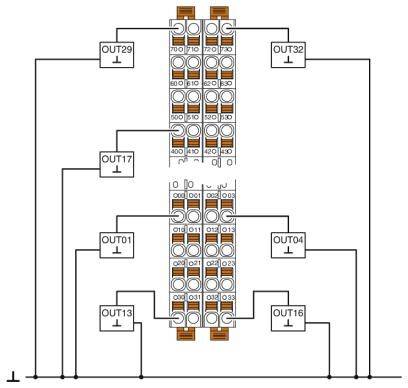

Electrical circuit diagram with five outputs (OUT01, OUT04, OUT13, OUT16, OUT17), which are routed via wiring to a central control panel.

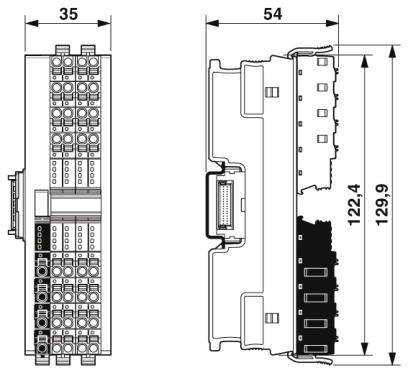

Two technical drawings of an electronic device, side and front view with dimensional specifications of 35 mm and 54 mm.

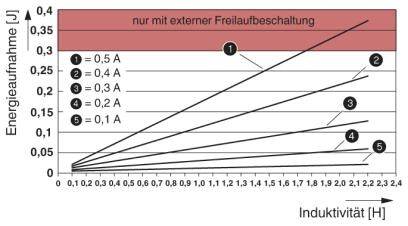

Diagram shows the relationship between energy absorption (J) and inductivity (H) with five different current strengths from 0.1 A to 0.5 A; red-marked area at the top with note 'only with external free disconnection'.

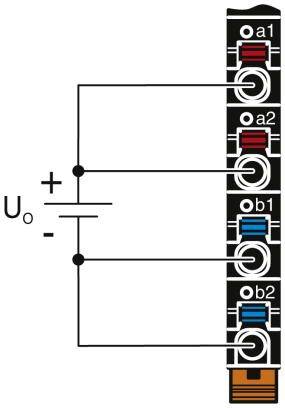

Diagram of an electrical circuit: Two pairs of light-emitting diodes (a1/a2 and b1/b2) connected to a voltage source Uo+.
1/7
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
  • Color: Traffic gray A RAL 7042
  • Net weight: 159 g
  • PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
  • Number of outputs: 32
  • Installation position: Any (no temperature derating)
  • Wire stripping length: 8 mm
  • Pollution level: 2
  • OVERVOLTAGE CATEGORY II (EN 61010-2-201/UL 61010-2-201)
  • Conductor cross-section rigid Min: 0.2 mm²
  • Conductor cross-section rigid max. 1.5 mm²
  • Conductor cross-section flexible min.: 0.2 mm²
  • Conductor cross-section flexible max. 1.5 mm²
  • Conductor cross-section AWG min: 24
  • Conductor cross-section AWG max. 16
  • Transmission speed 100 MBit/s.
  • Power consumption: max. 300 mW
Product type

I/O module

Type

AXL F DO32/1 2H

No. of outputs (max.)

32

No. of outputs

32 x

Output signal current

500 mA

Max. output current per channel

500 mA

Min. operating voltage

19.2 V DC

Operating voltage

19.2 - 30 V DC

Max. operating voltage

30 V DC

Output signal voltage

24 V

Operating voltage

5 V DC

Height

129.9 mm

Length

54 mm

Width

35 mm

IP20

Dim

(L x W x H) 54 x 35 x 129.9 mm

Connection method

1-core

Connection

Push-in wire connector

Max. current consumption

60 mA

Manufacturer part #

1004925

Fitting type (details)

Mounting rail

Max. ambient temperature

+60 °C

Min. ambient temperature

-25 °C

Logic voltage UL

5 V DC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2208901 Phoenix Contact AXL F DO32/1 2H 1004925 I/O module 5 V DC

User & Safety Instructions

User & Safety Instructions 2208901 Phoenix Contact AXL F DO32/1 2H 1004925 I/O module 5 V DC

Description

32 digital outputs. 24 V DC, 500 mA Connection of actuators in 1-wire technology. Single-channel diagnostics. Minimum update time less than 100 µs. Saved device type label.
