Phoenix Contact AXL F RTD4 XC 1H 1035430 I/O module 5 V DC

A grey DIN rail modular automation device with connection terminals and a separate plug adapter, shown from the side.

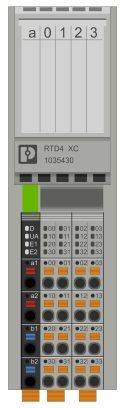

Automation module with multiple numbered connections for temperature measurement. Model 'RTD4 XC 1005430'.

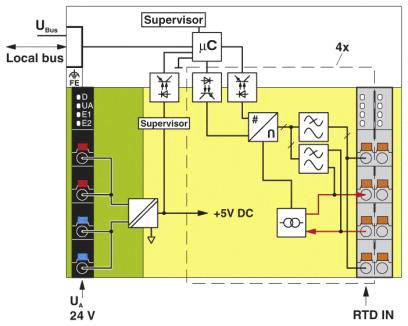

'Diagram of a monitoring system: shows microcontroller, local bus connection and 24V to 5V DC conversion.'

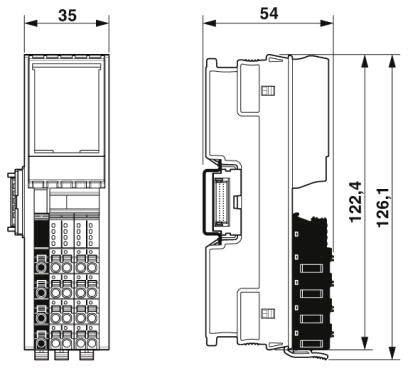

Technical drawing of an electronic device with dimensions. Left: Width 35 mm. Right: Width 54 mm, Height 126.1 - 126.4 mm.

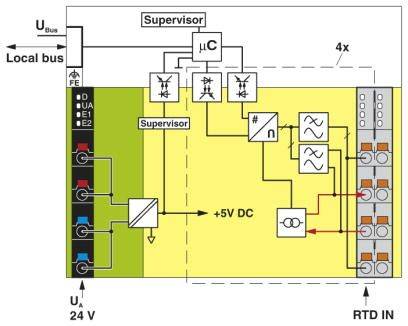

'Block diagram of an electronic control unit with supervisor, microcontroller, bus connections and voltage indicator (24V DC).'

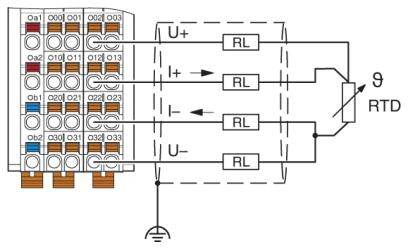

Diagram of an electrical circuit for temperature measurement using a resistance temperature detector (RTD), showing connection layout and connection points.

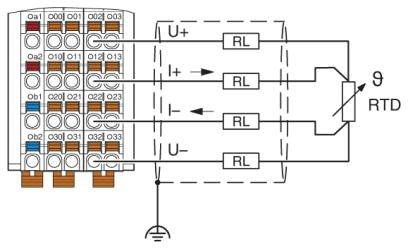

Wiring diagram for an RTD sensor: Shows connections U+, I+, I-, U-, connection to resistance line (RL) and earthing point.

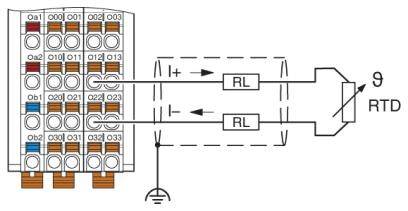

Wiring diagram for an RTD sensor: Shows connection terminals with markings and symbols for current flows and earthing.

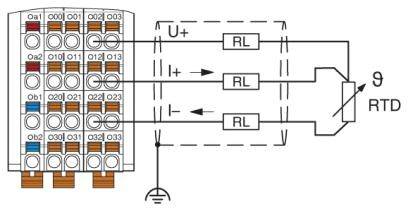

Circuit diagram of an RTD sensor: Shows connections with U+, I+, I- and resistors (RL). RTD marked with 9. Ground connection at the bottom.
1/9
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Description of the input: Inputs for resistive temperature sensors
  • Number of inputs: 4 (for resistive temperature sensors)
  • Protective circuit: Overvoltage protection supply voltage electronic (35 V, 0.5 s)
  • Input filter time 40 ms
  • Color: Traffic gray A RAL 7042
  • Net weight 144 g
  • PROTECTION CLASS III (IEC 61140, EN 61140, VDE 0140-1)
  • Installation position: Any (no temperature derating)
  • Wire stripping length: 8 mm
  • Conductor cross-section rigid Min: 0.2 mm²
  • Conductor cross-section rigid max. 1.5 mm²
  • Conductor cross-section flexible min.: 0.2 mm²
  • Conductor cross-section flexible max. 1.5 mm²
  • Conductor cross-section AWG min: 24
  • Conductor cross-section AWG max. 16
  • Transmission speed 100 MBit/s.
  • Power consumption: max. 700 mW
  • Resolution A/D converter: 24 bit
Product type

I/O module

Type

AXL F RTD4 XC 1H

No. of analogue inputs

4

No. of inputs (max.)

4

Min. operating voltage

19.2 V DC

Operating voltage

19.2 - 30 V DC

Max. operating voltage

30 V DC

Operating voltage

5 V DC

Height

126.1 mm

Length

54 mm

Width

35 mm

IP20

Dim

(L x W x H) 54 x 35 x 126.1 mm

Connection method

2-, 3-, 4-core

Connection

Push-in wire connector

Max. current consumption

140 mA

Manufacturer part #

1035430

Fitting type (details)

Mounting rail

Max. ambient temperature

+60 °C

Min. ambient temperature

-25 °C

Logic voltage UL

5 V DC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2136985 Phoenix Contact AXL F RTD4 XC 1H 1035430 I/O module 5 V DC

User & Safety Instructions

User & Safety Instructions 2136985 Phoenix Contact AXL F RTD4 XC 1H 1035430 I/O module 5 V DC

Description

Axioline F XC, temperature recording module, analogueue inputs: 4 (for resistive temperature sensors), connection technology: 2-, 3-, 4-wire (shielded), transmission speed in local bus: 100 MBit/s, extreme conditions version, protection class: IP20, including socket module and Axioline F connectors
