Phoenix Contact ELR 1-SC-230AC/600AC-30 SSC Zero crossing 30 A + varistor Compatible with (relay brand): Phoenix Contact

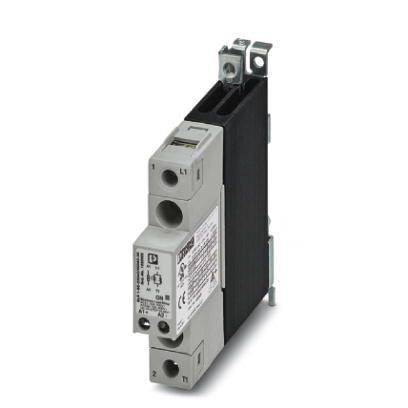

A single-pole terminal block module with screw connection, mounted on a DIN rail, used in industrial applications.

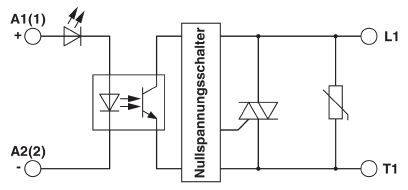

Circuit diagram of a zero-voltage switch with diodes, resistors, and transistors. Inputs A1 and A2, connected to outputs L1 and T1.

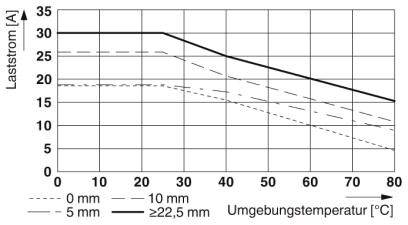

'Diagram of current load [A] in relation to ambient temperature [°C]. Lines show data for 0, 5, 10 and ≥22.5 mm.'
1/3
Image similar
Product type
SSC
Current load
30 A
Connection
Screw terminal
Packaging type
Piece
Type
ELR 1-SC-230AC/600AC-30
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Ambient temperature (storage/transport): -40 °C - +80 °C.
  • Input designation: Control input
  • Transmission frequency: 6 Hz
  • Designation of output: Load output
  • Protective designation: Varistor
  • Mounting position: Vertical (horizontal mounting rail)
  • Designation Connection: Control circuit
  • Wire stripping length: 8 mm
  • Conductor cross-section rigid: 0.5 mm² - 2.5 mm²
  • Conductor cross-section flexible: 0.5 mm² - 2.5 mm²
  • Wire cross-section AWG: 18 - 12
  • Residual voltage< 1 V
  • Leakage current< 3 mA
  • Surge current 600 A.
  • Screw thread: M3
  • Operating voltage display: LED green
Packaging type

Piece

Product type

SSC

Type

ELR 1-SC-230AC/600AC-30

Switching type

Zero crossing

Control voltage (min.)

24 V AC

Control voltage (max.)

275 V AC

Control voltage range

24 - 275 V AC

Switching voltage (min.)

42 V AC

Switching voltage (max.)

660 V AC

Permanent current (max.)

30 A

Current load

30 A

Compatible with

Phoenix Contact

Features

+ varistor

Mounting type

DIN rail

Connection

Screw terminal

Min. temperature

-30 °C

Max. temperature

+70 °C

Width

18 mm

Height

110 mm

Depth

103 mm

Dim

(W x H x D) 18 x 110 x 103 mm

Content

1 pc(s)

Current load (max.)

30 A

Nominal control voltage

230 V AC

Max. output current

30 A

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2141032 Phoenix Contact ELR 1-SC-230AC/600AC-30 SSC Zero crossing 30 A + varistor Compatible with (relay brand): Phoenix Contact

User & Safety Instructions

User & Safety Instructions 2141032 Phoenix Contact ELR 1-SC-230AC/600AC-30 SSC Zero crossing 30 A + varistor Compatible with (relay brand): Phoenix Contact

Description

1-phase solid-state contactor, input voltage 230 V AC, output current 30 A, zero voltage switch

This text is machine translated.
