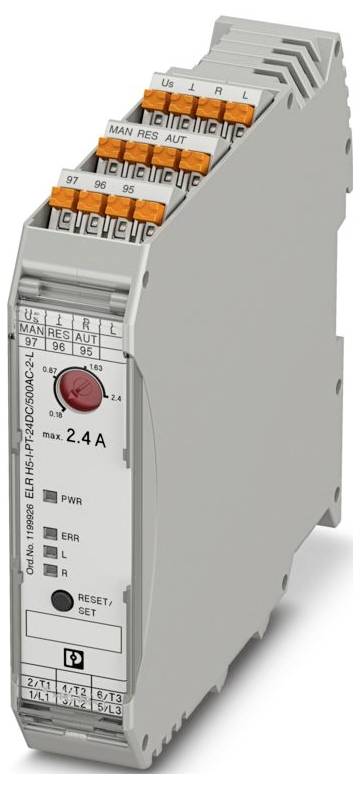

Phoenix Contact ELR H5-I-PT-24DC/500AC-2-L 1199926 Motor starter 24 V DC Nominal current 2.4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection type main circuit: Spring-loaded connection
- Number of command points: 1
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 0
- Type of motor starter: Reversing starter
- Design of electrical connection for auxiliary and control circuit: Spring connection
- Tripping class CLASS 10
- Rated operating current at AC-3, 400 V 2.4 A.
- Rated operating current Ie: 2.4 A.
- Rated control supply voltage DC 19.2-19.2 V.
- External reset possible: Yes
- With short-circuit release: No.
- Voltage type for activation: DC
- Temperature-compensated overload protection: No.
- Rail mounting possible: Yes
- Overload release current setting 0.18-2.4 A
- Motor voltage
500 V AC
- Product type
Motor starter
- Supply current
2.4 A
- Operating voltage
500 V
- Nominal voltage
24 V DC
- Operating phases
3
- Manufacturer part #
1199926
- Nominal current
2.4 A
- Nominal current - rounded value
2.4 A
- Type
ELR H5-I-PT-24DC/500AC-2-L
- Dim
(W x H x D) 22.5 x 107.5 x 114 mm
- Connection
Spring-loaded connector
- Width
22.5 mm
- Height
107.5 mm
- Depth
114 mm
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566147 Phoenix Contact ELR H5-I-PT-24DC/500AC-2-L 1199926 Motor starter 24 V DC Nominal current 2.4 A
User & Safety Instructions
User & Safety Instructions 3566147 Phoenix Contact ELR H5-I-PT-24DC/500AC-2-L 1199926 Motor starter 24 V DC Nominal current 2.4 A
Description
Hybrid motor starters; functions: Start motor, reverse motor, motor protection, without symmetry monitoring, Without phase failure detection, without low load detection; input: 24 V DC; output: 3~ , 500 V AC, 2.4 A; push-in connection
