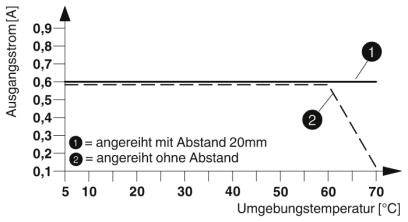

![Diagram showing the initial current [A] in relation to ambient temperature [°C]. Line 1: Spacing 20 mm, constant at 0.8 A. Line 2: Without spacing, drops to 0.7 A at 60 °C.](https://asset.conrad.com/media10/isa/160267/c1/-/en/002225658TI01/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/2
Image similar
Phoenix Contact ELR H5-IES-PT-24DC/500AC-06-T 2906058 Motor starter 24 V DC Nominal current 0.6 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Rail mounting
- Protection class: IP20
- Wire stripping length: 10 mm
- Max. Operating height< 2000 m.
- Network frequency 50/60 Hz
- CONTROL SUPPLY VOLTAGE RANGE 19.2 V/DC - 30 V/DC
- Rated control supply current 40 mA
- Designation of input: Control input right / left
- Power loss 1.1 W - 1.5 W
- Operating voltage display: LED green
- Status indicator: Yellow LED
- Error display: LED red
- Designation Connection: Control circuit
- Type of motor starter: Reversing starter
- Conductor cross-section 0.2 mm² - 2.5 mm²
- Wire cross-section AWG: 24 - 14
- Dimensioning surge voltage: 6 kV
- Rated insulation voltage 500 V.
- Contact type: 1 changeover contact
- Motor voltage
24 V DC
- Product type
Motor starter
- Supply current
0.6 A
- Operating voltage
42 V AC - 550 V AC
- Nominal voltage
24 V DC
- Manufacturer part #
2906058
- Nominal current
0.6 A
- Nominal current - rounded value
600 mA
- Type
ELR H5-IES-PT-24DC/500AC-06-T
- Dim
(W x H x D) 22.5 x 107.5 x 114 mm
- Connection
Push-in connector
- Width
22.5 mm
- Height
107.5 mm
- Depth
114 mm
- Max. temperature
+70 °C
- Min. temperature
+5 °C
- UKCA
yes
