Phoenix Contact ELR H5-IES-PT/500AC-3-IOL 2908669 Motor starter 24 V DC Nominal current 3 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Rail mounting
- Protection class: IP20
- Wire stripping length: 10 mm
- Max. Operating height< 2000 m.
- Network frequency 50/60 Hz
- CONTROL SUPPLY VOLTAGE RANGE 19.2 V/DC - 30 V/DC
- Rated control supply current 65 mA
- Input designation: Enable input
- Power loss 0.88 W - 4.1 W.
- Operating voltage display: LED green
- Status indicator: Yellow LED
- Error display: LED red
- Designation Connection: Control circuit
- Type of motor starter: Reversing starter
- Conductor cross-section 0.2 mm² - 2.5 mm²
- Wire cross-section AWG: 24 - 14
- Dimensioning surge voltage: 6 kV
- Rated insulation voltage 550 V.
- Motor voltage
500 V AC V AC
- Product type
Motor starter
- Supply current
3 A
- Operating voltage
42 V AC - 550 V AC
- Nominal voltage
24 V DC
- Operating phases
3
- Manufacturer part #
2908669
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Type
ELR H5-IES-PT/500AC-3-IOL
- Dim
(W x H x D) 22.5 x 127 x 114 mm
- Connection
Push-in connector
- Width
22.5 mm
- Height
127 mm
- Depth
114 mm
- Max. temperature
+55 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225744 Phoenix Contact ELR H5-IES-PT/500AC-3-IOL 2908669 Motor starter 24 V DC Nominal current 3 A
Datasheet 2225744 Phoenix Contact ELR H5-IES-PT/500AC-3-IOL 2908669 Motor starter 24 V DC Nominal current 3 A
User & Safety Instructions
User & Safety Instructions 2225744 Phoenix Contact ELR H5-IES-PT/500AC-3-IOL 2908669 Motor starter 24 V DC Nominal current 3 A
Description

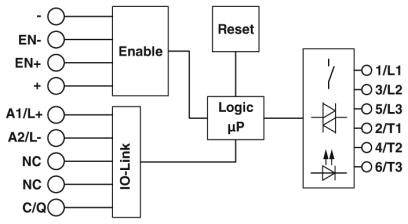

Networked hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 3 A output current, with adjustable overload cut-off, emergency stop function up to SIL 3 / PL e and push-in connection. Connection to IO-Link.
