Phoenix Contact ELR H5-IS-PT- 24DC/500AC-3-P 2909569 Motor starter 24 V DC Nominal current 3 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Rail mounting
- Protection class: IP20
- Wire stripping length: 10 mm
- Max. Operating height< 2000 m.
- Network frequency 50/60 Hz
- CONTROL SUPPLY VOLTAGE RANGE 19.2 V/DC - 30 V/DC
- Rated control supply current 60 mA
- Designation of input: Control input right/left and enable input
- Power loss 0.88 W - 4.1 W.
- Operating voltage display: LED green
- Status indicator: Yellow LED
- Error display: LED red
- Designation Connection: Control circuit
- Conductor cross-section 0.2 mm² - 2.5 mm²
- Wire cross-section AWG: 24 - 14
- Dimensioning surge voltage: 6 kV
- Rated insulation voltage 550 V.
- Contact type: 1 changeover contact
- Motor voltage
500 V AC
- Product type
Motor starter
- Supply current
3 A
- Operating voltage
42 V AC - 550 V AC
- Nominal voltage
24 V DC
- Operating phases
3
- Manufacturer part #
2909569
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Type
ELR H5-IS-PT- 24DC/500AC-3-P
- Dim
(W x H x D) 22.5 x 107.5 x 114 mm
- Connection
Push-in connector
- Width
22.5 mm
- Height
107.5 mm
- Depth
114 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225766 Phoenix Contact ELR H5-IS-PT- 24DC/500AC-3-P 2909569 Motor starter 24 V DC Nominal current 3 A
Datasheet 2225766 Phoenix Contact ELR H5-IS-PT- 24DC/500AC-3-P 2909569 Motor starter 24 V DC Nominal current 3 A
User & Safety Instructions
User & Safety Instructions 2225766 Phoenix Contact ELR H5-IS-PT- 24DC/500AC-3-P 2909569 Motor starter 24 V DC Nominal current 3 A

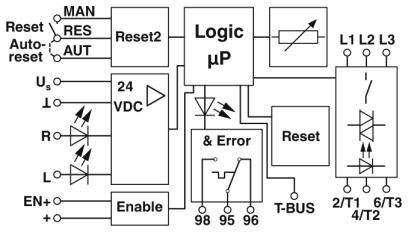

Description
Hybrid motor starter as an alternative to the classic reversing contactor circuit. Reversed 3~ AC motors up to 3 A, offers motor protection and EMERGENCY STOP up to SIL 3 / PL e. Possible group shutdown, supply and relay expansion via rail bus connector.
