Phoenix Contact ELR H51-IESSC-24DC500AC-06 2902746 Motor starter 24 V DC Nominal current 0.6 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Rail mounting
- Protection class: IP20
- Wire stripping length: 8 mm
- Max. Operating height< 2000 m.
- Network frequency 50/60 Hz
- CONTROL SUPPLY VOLTAGE RANGE 19.2 V/DC - 30 V/DC
- Rated control supply current 40 mA
- Designation of input: Control input right / left
- Power loss 0.88 W - 2.8 W
- Operating voltage display: LED green
- Status indicator: Yellow LED
- Error display: LED red
- Designation Connection: Control circuit
- Screw thread: M3
- Type of motor starter: Reversing starter
- Conductor cross-section 0.2 mm² - 2.5 mm²
- Wire cross-section AWG: 24 - 14
- Tightening torque: 0.5 Nm - 0.6 Nm
- Dimensioning surge voltage: 6 kV
- Rated insulation voltage 500 V.
- Contact type: 1 changeover contact
- Motor voltage
24 V DC
- Product type
Motor starter
- Supply current
0.6 A
- Operating voltage
42 V AC - 550 V AC
- Nominal voltage
24 V DC
- Manufacturer part #
2902746
- Nominal current
0.6 A
- Nominal current - rounded value
600 mA
- Type
ELR H51-IESSC-24DC500AC-06
- Dim
(W x H x D) 22.5 x 160 x 114.5 mm
- Connection
Screws
- Width
22.5 mm
- Height
160 mm
- Depth
114.5 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
22.5
160 mm
114.5 mm
1
1
0.075-0.6 A
FALSE
19.2-19.2 V
IP20
Screw connection
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225467 Phoenix Contact ELR H51-IESSC-24DC500AC-06 2902746 Motor starter 24 V DC Nominal current 0.6 A
Datasheet 2225467 Phoenix Contact ELR H51-IESSC-24DC500AC-06 2902746 Motor starter 24 V DC Nominal current 0.6 A
User & Safety Instructions
User & Safety Instructions 2225467 Phoenix Contact ELR H51-IESSC-24DC500AC-06 2902746 Motor starter 24 V DC Nominal current 0.6 A

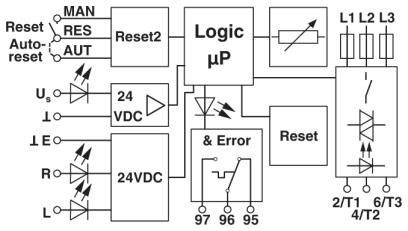

Description
Wiring savings. Long life. Space saving. Low-wear switching.
