Phoenix Contact FA MCR-EX-D-TUI-UI-2REL-UP Digital display
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (operation): -20 °C ... 60 °C
- Max. Operating height< 2000 m (above sea level)
- Description of the input: Universal input
- Input signal current: 0 mA ... 20 mA +10 %
- Output signal current: 0 mA ... 20 mA
- Wire stripping length: 10 mm
- Material casing: PC-GF10
- Power consumption ≤ 6.9 W
- Product type
Digital display
- Reading type
Voltage
Temperature
Amperage
- Reading range (min.)
0 mA
- Type
FA MCR-EX-D-TUI-UI-2REL-UP
- Reading range (max.)
20 mA
IP65 (front)
- Dim
(L x W x H) 175 x 96 x 48 mm
- Max. operating voltage
230 V DC/AC
- Min. operating voltage
24 V DC/AC
- Width
96 mm
- Height
48 mm
- Length
175 mm
- Interfaces
Analogue voltage
Analogue amperage
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225702 Phoenix Contact FA MCR-EX-D-TUI-UI-2REL-UP Digital display
Datasheet 2225702 Phoenix Contact FA MCR-EX-D-TUI-UI-2REL-UP Digital display
User & Safety Instructions
User & Safety Instructions 2225702 Phoenix Contact FA MCR-EX-D-TUI-UI-2REL-UP Digital display
Description

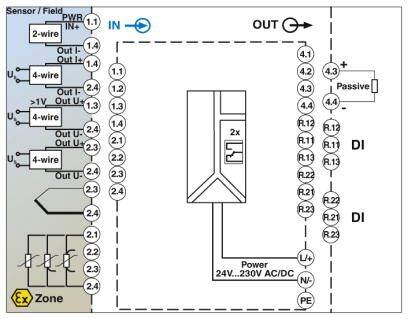

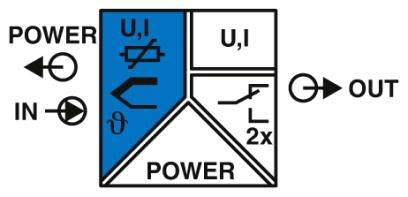

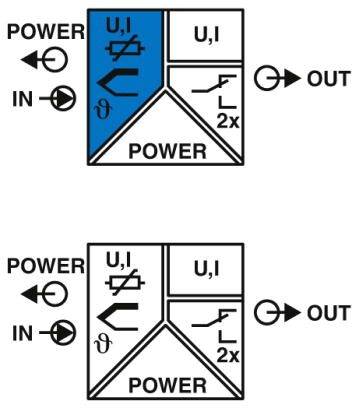

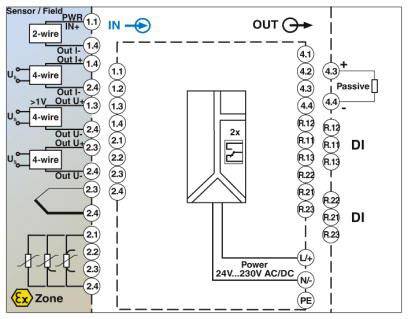

Multifunctional Ex-i process indicator in control panel housing for monitoring and displaying analogue measured values. Universal inputs allow the connection of current, voltage, RTDs and TCs. Two relay changer outputs and one analogue output.
