Phoenix Contact FB-12SP 2316310 Coupling module 32 V DC

'Electronic modular system with multiple green connection plugs, mounted on a black rail.'

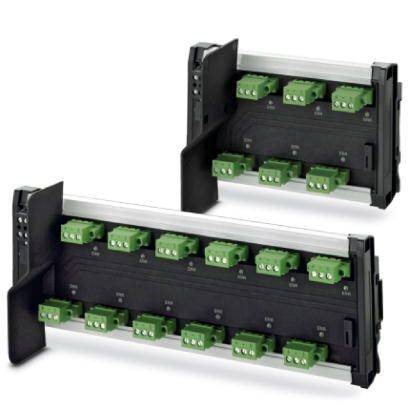

Two industrial heavy-duty terminal blocks with multiple green terminals arranged in two rows. They are used for securing and distributing electrical connections.

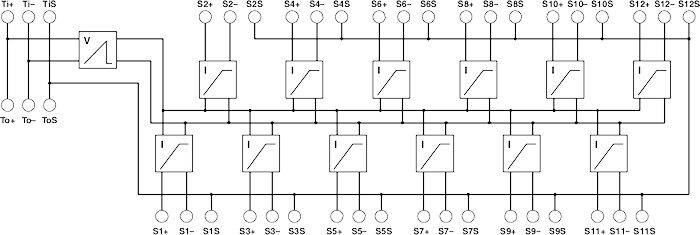

'Schematic representation of a circuit with multiple switches, marked from S1+ to S13- and V as the central point.'
Circuit diagram shows a network of several parallel electrical components, marked with 'I'. Connected to a voltmeter.

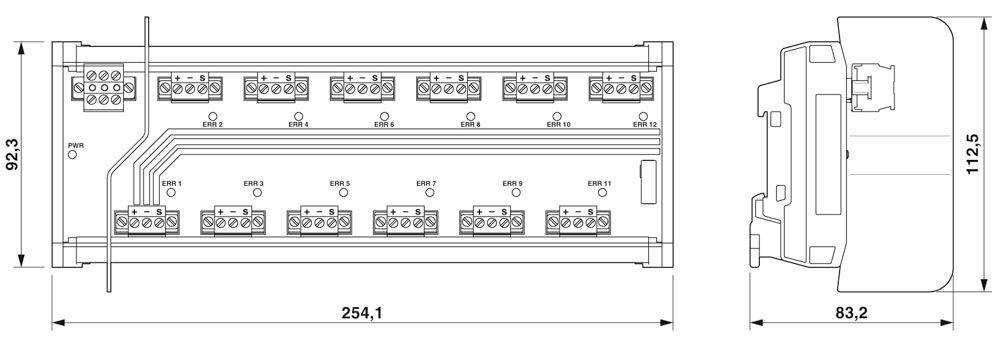

Technical drawing of an electrical connection module with dimensions: width 254.1 mm, height 92.3 mm, and depth 83.2 mm.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Ambient temperature (storage/transport): -50 °C - +90 °C.
  • Mounting position: On horizontal and vertical mounting rail NS 35 according to EN 60715
  • Net weight: 502.4 g
  • Typical current consumption 6.5 mA
  • Conductor cross-section 0.2 mm² - 2.5 mm²
  • Wire cross-section AWG 24 - 12
  • Interface: Foundation Fieldbus and PROFIBUS PA segment
  • Number of ports: 12
  • Connection type: Pluggable COMBICON screw connection for each tap tap
  • Terminating resistor 100 Ω
  • Rated output voltage< 32 V (per tap-off)
  • Output current: 38 mA
Product type

Coupling module

No. of inputs (max.)

12

Min. operating voltage

10.5 V DC

Operating voltage

10.5 - 32 V DC

Max. operating voltage

32 V DC

Operating voltage

32 V DC

Height

112.5 mm

Length

83.5 mm

Width

254.1 mm

IP20

Dim

(L x W x H) 83.5 x 254.1 x 112.5 mm

Manufacturer part #

2316310

Type

FB-12SP

Max. ambient temperature

+90 °C

Min. ambient temperature

-50 °C

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209698 Phoenix Contact FB-12SP 2316310 Coupling module 32 V DC

Datasheet 2209698 Phoenix Contact FB-12SP 2316310 Coupling module 32 V DC

User & Safety Instructions

User & Safety Instructions 2209698 Phoenix Contact FB-12SP 2316310 Coupling module 32 V DC

Description

Connection of up to 12 Foundation Fieldbus or PROFIBUS PA field devices. Pre-assembled terminating resistor. Short-circuit protection with current limitation per stub tap. Ex-Na [NL], Ex Na [ic] or FISCO ic tap-off connectors. Eliminates problems with the cable bend radius by configuring the connector on one side.
