Phoenix Contact FB-6SP 2316307 Coupling module 32 V DC

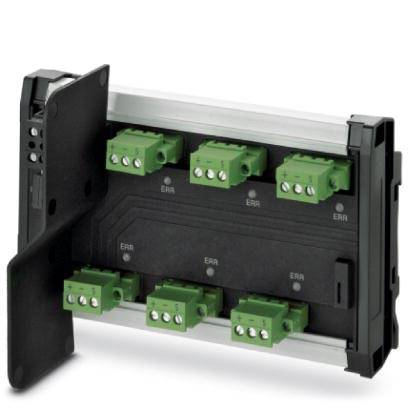

A black module with six green connectors in two rows. The module has a foldable cover on its side.

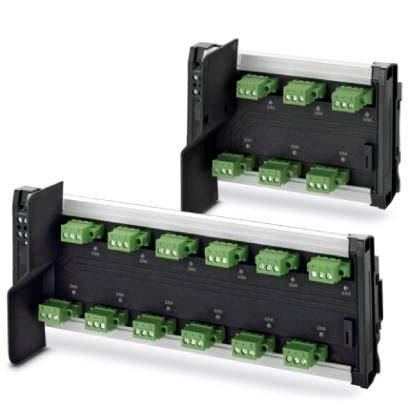

Two black electronic devices with multiple green terminal connectors mounted in a rectangular housing.

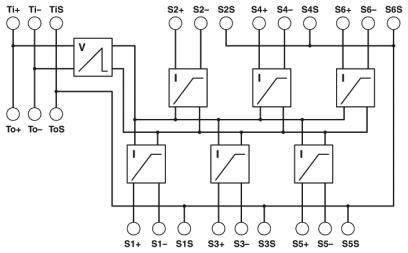

Schematic diagram of an electrical circuit diagram with multiple connection points and switches, showing connections and flow direction.
'Circuit diagram with seven rectangular boxes, connected by lines. Box in the top left marked with 'V'. Each box contains a diagonal line symbol. Connections on the left and bottom are labelled.'

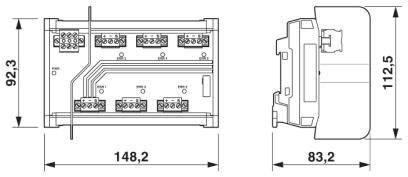

Technical drawing of an electronic device with dimensions: Width 148.2 mm, Height 92.3 mm, Depth 83.2 mm. Connectors visible.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Ambient temperature (storage/transport): -50 °C - +90 °C.
  • Mounting position: On horizontal and vertical mounting rail NS 35 according to EN 60715
  • Net weight: 323.5 g
  • Conductor cross-section 0.2 mm² - 2.5 mm²
  • Wire cross-section AWG 24 - 12
  • Interface: Foundation Fieldbus and PROFIBUS PA segment
  • Number of ports: 6
  • Connection type: Pluggable COMBICON screw connection for each tap tap
  • Terminating resistor 100 Ω
  • Rated output voltage< 32 V (per tap-off)
  • Output current: 38 mA
  • Typical current consumption 4.8 mA
Product type

Coupling module

No. of inputs (max.)

6

Min. operating voltage

10.5 V DC

Operating voltage

10.5 - 32 V DC

Max. operating voltage

32 V DC

Operating voltage

32 V DC

Height

112.5 mm

Length

83.5 mm

Width

148.2 mm

IP20

Dim

(L x W x H) 83.5 x 148.2 x 112.5 mm

Manufacturer part #

2316307

Type

FB-6SP

Max. ambient temperature

+90 °C

Min. ambient temperature

-50 °C

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209697 Phoenix Contact FB-6SP 2316307 Coupling module 32 V DC

Datasheet 2209697 Phoenix Contact FB-6SP 2316307 Coupling module 32 V DC

User & Safety Instructions

User & Safety Instructions 2209697 Phoenix Contact FB-6SP 2316307 Coupling module 32 V DC

Description

Connection of up to six Foundation Fieldbus or PROFIBUS PA field devices. Pre-assembled terminating resistor. Short-circuit protection with current limitation per stub tap. Ex-Na [NL], Ex Na [ic] or FISCO ic tap-off connectors. Eliminates problems with the cable bend radius by configuring the connector on one side.
