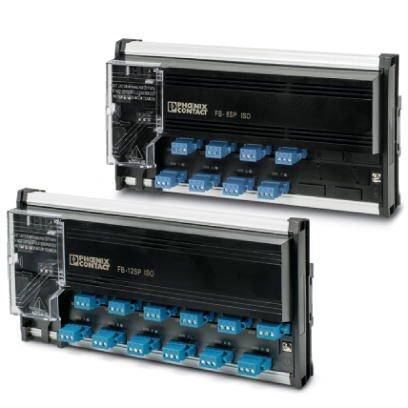

Phoenix Contact FB-8SP ISO 2316311 Coupling module 32 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (storage/transport): -40 °C - +85 °C.
- Mounting position: On horizontal and vertical mounting rail NS 35 according to EN 60715
- Net weight 1190 g
- Maximum current consumption 35 mA, 350 mA (maximum current of the main line)
- Conductor cross-section 0.2 mm² - 2.5 mm²
- Wire cross-section AWG 24 - 12
- Interface: Foundation Fieldbus and PROFIBUS PA segment
- Number of ports: 8
- Connection type: Pluggable COMBICON screw connection for each tap tap
- Terminating resistor: Integrated termination, activated with a bridge at the correct terminals
- Rated output voltage< 14 V (per tap-off)
- Output current: 35 mA
- Product type
Coupling module
- Min. operating voltage
16 V DC
- Operating voltage
16 - 32 V DC
- Max. operating voltage
32 V DC
- Operating voltage
32 V DC
- Height
142 mm
- Length
66 mm
- Width
279 mm
IP20
IP30

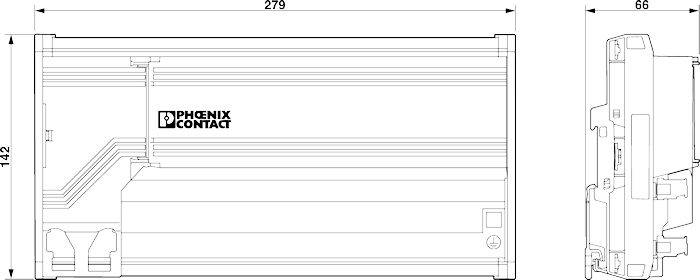

- Dim
(L x W x H) 66 x 279 x 142 mm
- Manufacturer part #
2316311
- Type
FB-8SP ISO
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137064 Phoenix Contact FB-8SP ISO 2316311 Coupling module 32 V DC
User & Safety Instructions
User & Safety Instructions 2137064 Phoenix Contact FB-8SP ISO 2316311 Coupling module 32 V DC
Description

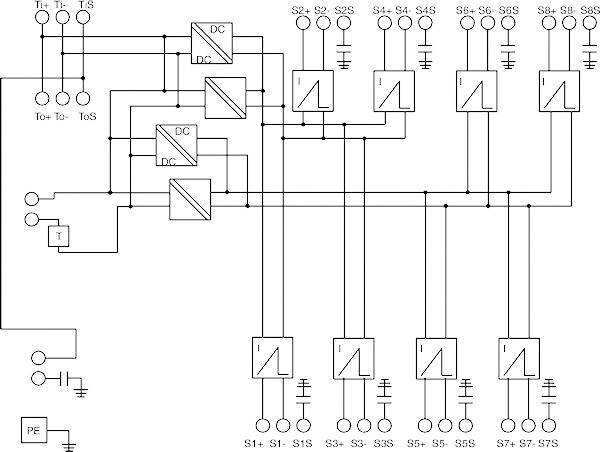

Connection of up to eight Foundation Fieldbus or PROFIBUS PA field devices in Zone 0/1 environments. Pre-assembled terminating resistor. Short-circuit protection with current limitation per stub tap. Two isolation zones: Stitches 1–4 and 5–8. Eliminates problems with the cable bend radius by configuring the connector on one side.
