Phoenix Contact HDMI Connection cable HDMI-A plug 3.00 m 1332083 PVC coating HDMI cable

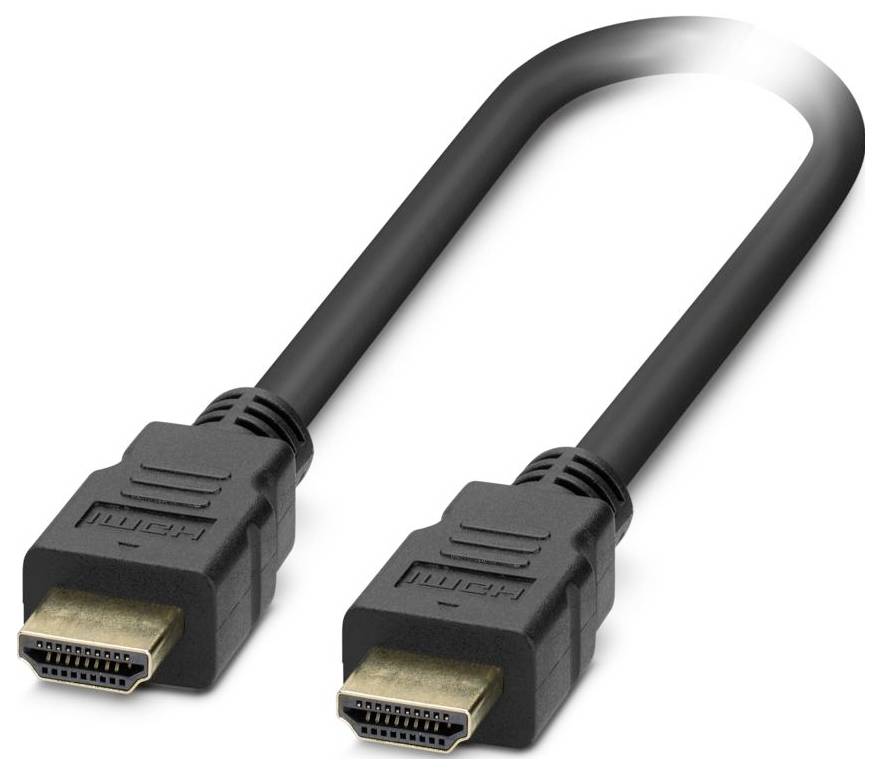

A black HDMI cable with connectors on both ends, used for transmitting digital video and audio signals between devices.
Image similar
Product type
HDMI cable
Connection type
HDMI
Version
Connection cable
Connection type
HDMI-A to HDMI-A
Connections
HDMI-A plug
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design: Straight HDMI type A plug
  • Number of pins: 19
  • Width: 20.3 mm
  • Height: 12 mm
  • Flammability class according to UL 94 UL94 V0
  • Material: housing: LCP
  • Mechanical Data: Mechanical Data
  • Ambient conditions: Environmental conditions
  • Protection class: IP20
  • Ambient temperature (operation): -25 °C ... 85 °C
  • Ambient temperature (storage/transport): -40 °C ... 85 °C
  • Length: 49.3 mm
  • Cable outside diameter 6.00 mm
  • Outer sheath, material: PVC
  • Cable length 3.00 m
  • Shielding: Aluminium-backed film
  • Outer sheath, color: Black
  • Insulation resistance 100 MΩ
  • Test voltage: 500 V/AC
  • UL AWM style 20276
  • Shielded: Yes
  • Line type PVC HDMI high-speed black
  • Mating cycles > 10000
  • Track 1: Track 1
  • Track 2: Track 2
  • Wave resistance 100 Ω
  • Testing voltage wire/wire 500 V AC
  • Testing voltage wire/shield 500.00 V AC
  • Sensor type HDMI high-speed
  • Cable type (short symbol): HDMI
  • Colour of the housing part: Black
  • PVC HDMI High Speed Black [HDMI]: PVC HDMI High Speed Black [HDMI]
Product type

HDMI cable

Connection type

HDMI

Version

Connection cable

Connection type

HDMI-A to HDMI-A

Connections

HDMI-A plug

Connector version

straight

Cable version

HDMI High Speed

Cable length

3.00 m

Cable features

PVC coating

Cable use

TV/monitor

Shielded

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3585014 Phoenix Contact HDMI Connection cable HDMI-A plug 3.00 m 1332083 PVC coating HDMI cable

User & Safety Instructions

User & Safety Instructions 3585014 Phoenix Contact HDMI Connection cable HDMI-A plug 3.00 m 1332083 PVC coating HDMI cable

Description

HDMI cable, protection class IP20, cable length 3 m, pin number 19, material LCP, HDMI high-speed
