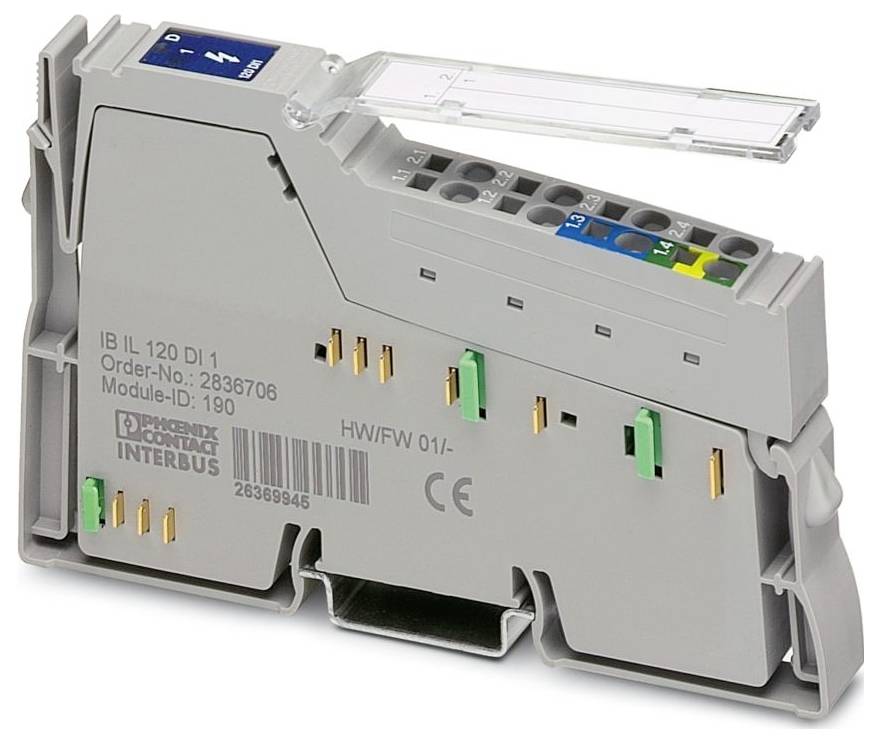

Image similar
Phoenix Contact IB IL 120 DI 1-PAC 2861917 Digital module 120 V AC, 7.5 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: inLine
- Modular design
- Connection type: Spring-cage connection
- Conductor cross-section flexible: 0.08 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.08 mm² ... 1.5 mm².
- Wire cross-section AWG: 28 ... 16
- Width 12.2 mm
- Height: 1.8" (119.8 mm)
- Depth: 71.5 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Mounting type: Rail mounting
- Permissible air humidity (operation): 75 % ... 85 % (in the range of -25 °C ... +55 °C must> be suitable measures against increased air humidity ( 85 %)
- Name of connection: inLine-connector plug
- Stripped length: 8 mm
- Transmission speed 500 kBit/s
- Maximum power loss at rated conditions 1.2 W.
- I (IEC 61140, EN 61140, VDE 0140-1) PROTECTION CLASS
- Number of interfaces: 2
- Air pressure (operation): 80 kPa ... 160 kPa (up to 2000 m üNN)
- Delivery scope: Inclusive of inLine-plug and labeling field
- Supply voltage range: 108 V AC ... 135 V AC
- Connection technology: Connection technology
- Permissible humidity (storage/transport): 75 % ... 85 % (slight condensation of a short duration may occur on the outdoor housing occasionally).
- Note for application: Only for industrial use
- Current consumption: 0.25 A
- Wire connection: Conductor connection
- Input voltage 120 V/AC
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m üNN)
- Number of channels: 1
- Name of input: Digital inputs
- Description of the input: IEC 61131-2 Type 1
- Number of inputs: 1
- Digital: Digital:
- Input voltage range "0" signal: 0 V AC ... 40 V AC
- Input voltage range "1" signal: 77 V AC ... 135 V AC
- Supply: Module electronics: Supply: Module electronics
- Supply voltage 120 V AC
- inLine local bus: inLine local bus
- Module
- ID code (Dec): 190
- ID code (HEX):BE
- Length code (HEX) C2
- Length code (Dec): 194
- 2-bit process data channel
- Input address space: 2 bits
- Output address space: 0 bytes
- Register length 2 Bit
- Need for parameter data: 1 bytes
- Need for configuration data: 4 bytes
- NOMINAL INPUT VOLTAGE UIN 120 V AC
- Nominal input current at UIN 8.1 mA (at nominal voltage)
- Sensor current per channel: Max. 500 mA
- Potential: Supply of logic (UL): Potential: Supply of logic (UL)
- Potential: Supply of peripherals: Potential: Supply of peripherals
- Potential separation/insulation of the voltage ranges: Potential separation/insulation of the voltage ranges
- Test voltage: 5 V supply incoming long-distance bus / 7.5 V supply (bus logic): 500 V AC, 50 Hz, 1 min.
- Testing voltage: 5 V supply of remote bus/7.5 V supply (bus logic): 500 V AC, 50 Hz, 1 min.
- Test voltage: 7.5 V supply (bus logic) / peripheral range: 2500 V AC, 50 Hz, 1 min.
- Testing voltage: Routine test 1200 V AC, 50 Hz, 1 min.
- inLine connection plug inLine connection plug
- Product type
Digital module
- Type
IB IL 120 DI 1-PAC
- No. of digital inputs (max.)
1
- No. of inputs (max.)
1
- No. of inputs
1 x
- Operating voltage
120 V AC
7.5 V DC
- Height
119.8 mm
- Length
71.5 mm
- Width
12.2 mm
IP20
- Dim
(L x W x H) 71.5 x 12.2 x 119.8 mm
- Connection method
3-core
- Connection
Spring-loaded connector
- Max. current consumption
0.25 A
- Manufacturer part #
2861917
- Type
modular
- Fitting type (details)
Carry rail mounting
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
- Depth
70.430346 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579598 Phoenix Contact IB IL 120 DI 1-PAC 2861917 Digital module 120 V AC, 7.5 V DC
User & Safety Instructions
User & Safety Instructions 3579598 Phoenix Contact IB IL 120 DI 1-PAC 2861917 Digital module 120 V AC, 7.5 V DC
Description
inLine, digital input terminal, digital inputs: 1, 120 V AC, connection technology: 3-conductor, Transmission speed in local bus: 500 kBit/s, protection class: IP20, including inLine connector and label field
