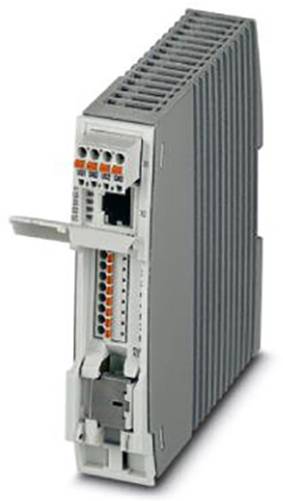

Phoenix Contact INJ 2103-T PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Push-in connection
- Mounting type: Rail mounting
- Material casing: Plastic
- Rated supply voltage 24 V DC (SELV/PELV, restriction for ATEX applications)
- Current consumption max. 2.1 A
- Power consumption ≤ 40 W.
- Conductor cross-section flexible m. Ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm².
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
30.2 mm
- Height
130 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2436065 Phoenix Contact INJ 2103-T PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
User & Safety Instructions
User & Safety Instructions 2436065 Phoenix Contact INJ 2103-T PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W)
Description
The midspan injectors connect Ethernet devices without PoE (e.g. Switches) with PoE-enabled devices (e.g. IP cameras). The injector as power sourcing equipment (PSE) supplies a powered device (PD) with the required energy via the data cable. The injector and terminal negotiate the power requirement independantly.
PoE injector, 30 W, RJ45 socket to push-in terminals, 10/100/1000 MBit/s, rail mounting, IP20, electrical isolation, shield contact with strain relief, shield current monitoring, overvoltage protection
Extended temperature range from -40 °C to +75 °C.
Fast connection of the PoE-leading cable
Concealed cable connection compartment with front cover
Integrated surge protection for high plant availability
Galvanic isolation of the internal power supply for protection against short-circuits on the PoE side
10/100/1000 MBit/s
This text is machine translated.
PoE injector, 30 W, RJ45 socket to push-in terminals, 10/100/1000 MBit/s, rail mounting, IP20, electrical isolation, shield contact with strain relief, shield current monitoring, overvoltage protection
Extended temperature range from -40 °C to +75 °C.
Fast connection of the PoE-leading cable
Concealed cable connection compartment with front cover
Integrated surge protection for high plant availability
Galvanic isolation of the internal power supply for protection against short-circuits on the PoE side
10/100/1000 MBit/s
This text is machine translated.
