Name: Phoenix Contact LEITERPLATTEN-ANSCHLUSSKL 2869757 200St Screw terminal 2.50 mm² Number of pins 3 Black 200 pc(s)
Brand: Phoenix Contact
SKU: 3374315

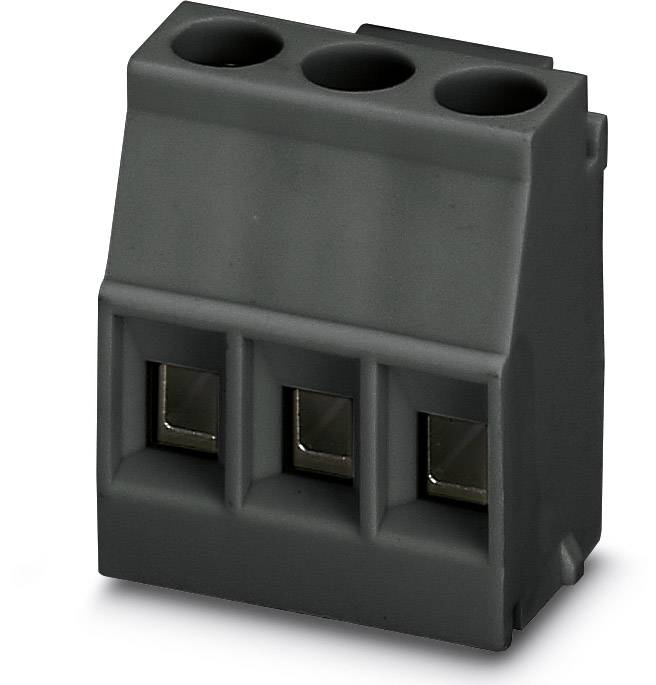

Three-pole, black terminal block for electrical connections. Suitable for printed circuit board mounting and provides secure connection.

Product type

Screw terminal

5 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MKDSO 2.5/ 3-L BK printed circuit board connection terminal

MKDSO 2.5/ 3-L BK
Industrial packaging, pack of 50

Technical specifications

Type: LEITERPLATTEN-ANSCHLUSSKL 2869757 200St

Product type: Screw terminal

Features: + extractor sleeve

CS: 5 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: MKDSO

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.14 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 26

Connector orientation: Parallel (to the PCB)

AWG max.: 14

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Black

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: LEITERPLATTEN-ANSCHLUSSKL 2869757 200St

Industrial packaging: Yes

Content: 200 pc(s)

Nominal voltage: 400 V

Width: 17.05 mm

Height: 15.30 mm

Length: 14.95 mm
