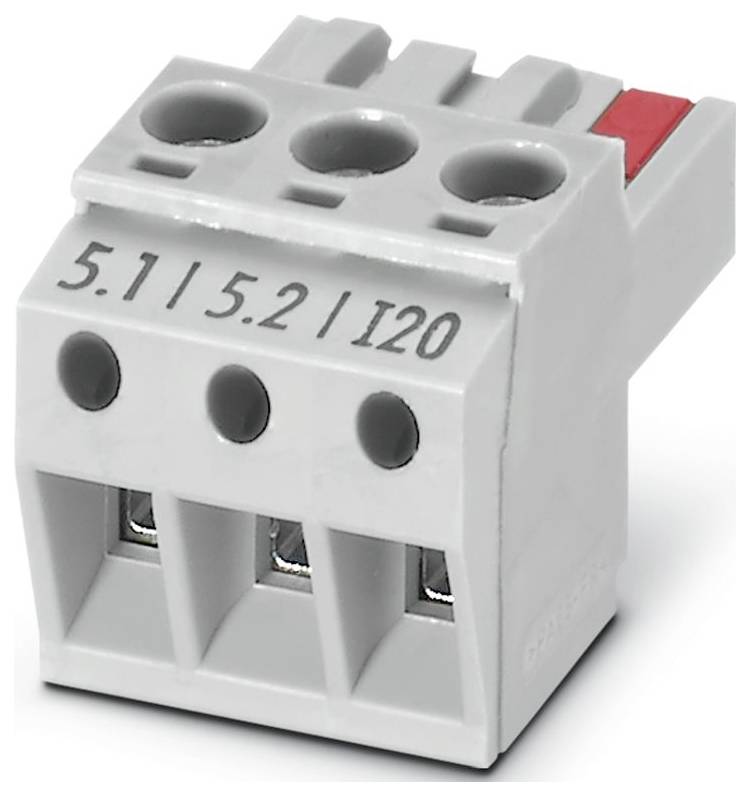

Image similar
Phoenix Contact MACX MCR-I20 2905680 Plug 1 pc(s)
Product type
Plug
Input signal (current) (max.)
20 mA
Type
MACX MCR-I20
Connection
Screws
Input signal (current)
+20 mA ... -20 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection type: screw terminals.
- M3 screw thread
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14
- Colour: Light gray (RAL 7035)
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 2000 m.
- Permissible air humidity (operation): Type. 5% ... 95% (no condensation)
- CE CE
- Transmission errors maximum: 1.1%
- Type
MACX MCR-I20
- Product type
Plug
- Input signal (current) (max.)
20 mA
- Connection
Screws
- Input signal (current)
+20 mA ... -20 mA
- Content
1 pc(s)
- Max. ambient temperature
65 °C
- Min. ambient temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579805 Phoenix Contact MACX MCR-I20 2905680 Plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579805 Phoenix Contact MACX MCR-I20 2905680 Plug 1 pc(s)
Description
Terminal clamp for current signals, +20 mA ... -20 mA, for safe switching of limit values, in combination with the temperature transmitters MACX ...-T-UI...
