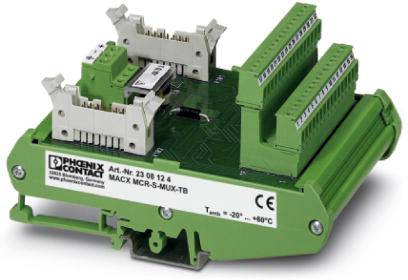

Phoenix Contact MACX MCR-S-MUX-TB 2308124 HART transfer module 1 pc(s)
Product type
HART transfer module
Type
MACX MCR-S-MUX-TB
Dim
(L x W x H) 125 x 80 x 70 mm
Content
1 pc(s)

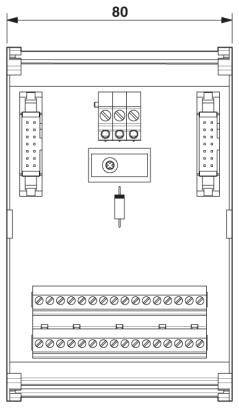

Width
80 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Type
MACX MCR-S-MUX-TB
- Product type
HART transfer module
- Dim
(L x W x H) 125 x 80 x 70 mm
- Content
1 pc(s)
- Width
80 mm

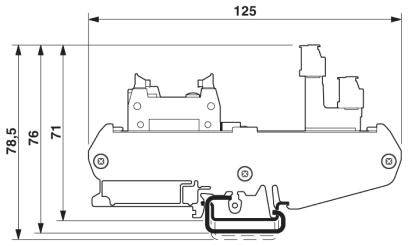

- Height
70 mm
- Length
125 mm
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136947 Phoenix Contact MACX MCR-S-MUX-TB 2308124 HART transfer module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2136947 Phoenix Contact MACX MCR-S-MUX-TB 2308124 HART transfer module 1 pc(s)
Description
The HART transfer board is used to operate the HART multiplexer MACX-MCR-S-MUX. The signals coming from the HART-compatible signal converters are connected to the terminal strip of the transfer board and transferred there to the multiplexer via an FLK.
