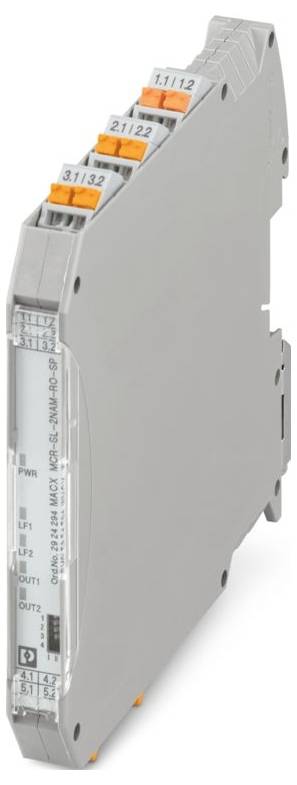

Phoenix Contact MACX MCR-SL-2NAM-RO-SP 2924294 Isolation amplifier 1 pc(s)
Product type
Isolation amplifier
Type
MACX MCR-SL-2NAM-RO-SP
Dim
(L x W x H) 113.7 x 12.5 x 107.9 mm
Connection
Push-in spring-loaded terminal
Output (voltage)
250 V AC; 120 V DC; 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: MACX Analog
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm².
- Wire cross-section AWG: 24 ... 14;24 ... 22 (TWIN cable end sleeve without plastic sleeve);20 ... 16 (TWIN-END SLEEVES with plastic cover)
- Width 12.5 mm
- Height: 107.9 mm
- Depth: 113.7 mm
- Colour: Grey (RAL 7042)
- Material housing PA 6.6-FR
- Ambient conditions: Environmental conditions
- Protection type IP20 (not rated by UL)
- Ambient temperature (operation): -40 °C ... 42 °C;-40 °C ... 49 °C (derating)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 2000 m (Technical data refer to altitude ≤2000 m above sea level For altitude >2000 m above NN see data sheet.)
- Standards/regulations: GB/T 3836.1;GB/T 3836.3;GB/T 3836.8
- Note: Additional EN 61326-1
- Mounting type: Rail mounting
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Stripped length: 10 mm
- ATEX
- IECEx: IECEx
- Identification: 2Ex ec NC IIC T4 GC
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated conditions < 1 W.
- Power loss: 1 W
- Supply voltage range: 19.2 V DC ... 30 V DC
- CE CE
- Certificate: BY/112 02.01 TP012 103.01 00078
- Signal
- Switching frequency: ≤ 20 Hz (no load)
- Electromagnetic compatibility: Conformity to EMC directive
- Interference radiation: Interference radiation
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Ship building approval: Ship building approval
- INMETRO: INMETRO
- IEC 61000-6-2; EN 61326
- SWITCHING VOLTAGE MAX. 250 V AC (2 A);120 V DC (0.2 A);30 V DC (2 A)
- Status display: Green LED (supply voltage);yellow LED (switching state);red LED (cable fault)
- Designation: Conducted interference variables
- Galvanic isolation between input and output: Yes
- Application: Digital IN
- Supply: Supply
- Maximum power consumption 35 mA (24 V DC)
- Number of channels: 0
- Short circuit current 8 mA
- Insulation: Secure separation
- Contact version: 1 closer per channel
- Flammability class to UL 94 (housing): V0 (housing)
- Shipbuilding data: Shipbuilding data
- Temperature B
- Humidity b
- Vibration A
- EMC B
- Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
- Rated insulation voltage 60 V AC / DC (supply, input / output)
- Testing voltage 2.5 kV AC (50 Hz, 60 s)
- Conductor cross-section flexible (2 conductors of the same cross-section): 0.25 mm² ... 0.34 mm² (TWIN wire-end sleeve without plastic sleeve);0.5 mm² ... 1.5 mm² (TWIN-end sleeve with plastic sleeve)
- Safety specifications: Safety specifications
- Data: Data
- Functionality: Functionality
- Contact material: AgSnO2, hard gold plated
- CCC / China-Ex: CCC / China-Ex
- GB standard GB standard
- Number of outputs: 2
- Safety Integrity Level (SIL) 2
- Rated supply voltage: 24 V DC -20 % ... +25 %
- Galvanic isolation 3-way
- Power consumption: 1 W
- NS 35/7.5 depth: 114.5 mm (snapped onto DIN rail NS 35/7.5 in accordance with EN 60715)
- DIP switch configuration
- Number of inputs: 2
- Switching: Relays: Switching: Relays
- Ex-Installation (EPL): GC;Div. 2
- EAC ex: EAC ex
- Evaluation criterion: A.
- Galvanic isolation Input / Output IEC / EN 60079-11: Galvanic isolation Input / Output IEC / EN 60079-11
- Safety integrity level (SIL, IEC 61508): Safety integrity level (SIL, IEC 61508)
- Technical data: IEC 61508 - Low-Demand: Security specifications: IEC 61508 - Low-Demand
- Systematic Capability: Systematic Capability
- Altitude range (≤ 2000 m): Height usage range (≤ 2000 m)
- Altitude range (≤ 3000 m): Height usage range (≤ 3000 m)
- Height range: > 4000 m ... 5000 m
- Altitude range (≤ 4000 m): Height usage range (≤ 4000 m)
- Altitude range (≤ 5000 m): Height usage range (≤ 5000 m)
- Idling voltage 8 V DC
- Line fault detection: < 0.05 mA ... 0.35 mA (cable break);< 100 Ω ... 360 Ω (short circuit);On/off switchable via DIP switch
- Galvanic isolation input/supply, rail bus connector IEC / EN 60079-11: Galvanic isolation input/supply, rail bus connector IEC / EN 60079-11
- Galvanic isolation input/supply, rail bus connector IEC / EN 61010-1: Galvanic isolation input/supply, rail bus connector IEC / EN 61010-1
- Galvanic isolation output 1/output 2/input, supply, rail bus connector IEC / EN 61010-1: Galvanic isolation output 1/output 2/input, supply, rail bus connector IEC / EN 61010-1
- Galvanic isolation output 1/output 2/input/supply, rail bus connector: Galvanic isolation output 1/output 2/input/supply, rail bus connector
- Signal: NAMUR: Signal
- Usable input sources: NAMUR proximity initiators (IEC/EN 60947-5-6); potential-free switching contacts; resistive switching contacts
- Switching threshold "0" signal Current: < 1.2 mA (blocking)
- Switching threshold "1" signal Current: > 2.1 mA (conductive)
- Switching hysteresis < 0.2 mA
- Switching capacity maximum 500 VA
- Recommended minimum load: 5 V / 10 mA
- EAC ex: EAC ex
- Type
MACX MCR-SL-2NAM-RO-SP
- Product type
Isolation amplifier
- Dim
(L x W x H) 113.7 x 12.5 x 107.9 mm
- Connection
Push-in spring-loaded terminal
- Output (voltage)
250 V AC; 120 V DC; 30 V DC
- Output (current)
2 A (bei 250 V AC); 0.2 A (bei 120 V DC); 2 A (bei 30 V DC)
- Input signal (voltage)
8 V DC
- Content
1 pc(s)
- Configuration
DIP switch
- Width
12.5 mm
- Height
107.9 mm
- Length
113.7 mm
- Max. ambient temperature
49 °C
- Min. ambient temperature
-40 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
19.2 V DC ... 30 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
113.7 mm
IP20
- Switching voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580213 Phoenix Contact MACX MCR-SL-2NAM-RO-SP 2924294 Isolation amplifier 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580213 Phoenix Contact MACX MCR-SL-2NAM-RO-SP 2924294 Isolation amplifier 1 pc(s)
Description
NAMUR isolation amplifier, 2-channel for operation of proximity initiators and switches. The signals are transmitted to the control level via relay outputs (normally open contact). Line fault detection, galvanic 3-way isolation, SIL 2, push-in connection.
