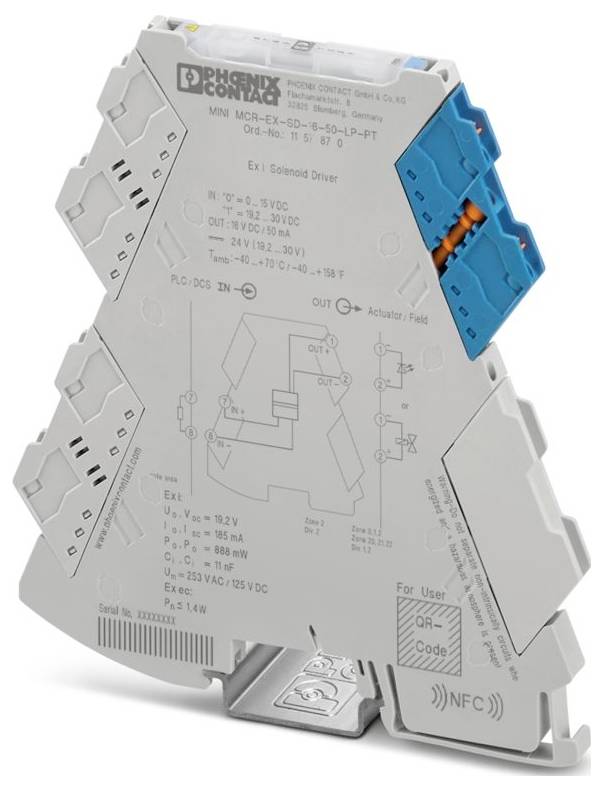

Phoenix Contact MINI MCR-EX-SD-16-50-LP-PT 1157870 Valve controller 1 pc(s)
Product type
Valve controller
Input signal (current) (max.)
50 mA
Input signal (voltage) (max.)
30 V
Type
MINI MCR-EX-SD-16-50-LP-PT
Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- MINI Analog Pro product family
- Push-in connection
- Conductor cross-section flexible: 0.14 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 2.5 mm² (with wire-end sleeve);0.14 mm² ... 2.5 mm² (without ferrule)
- Wire cross-section AWG: 24 ... 12 (flexible)
- Width 6.2 mm
- Height: 109.81 mm
- Depth: 119.2 mm
- Colour: Grey (RAL 7042)
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 49 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations: GB/T 3836.1;GB/T 3836.3;GB/T 3836.4
- Overvoltage category II (≤ 5000 m)
- Pollution level 2 (≤ 5000 m)
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- Stripped length: 10 mm
- Max. Inner inductance Li: Negligible
- ATEX
- IECEx: IECEx
- Marking: [Ex ia Ma] I;[Ex ia Ga] IIC;[Ex ia Da] IIIC;Ex ec [ia Ga] IIC T4 GC
- UL, USA / Canada: UL, USA / Canada
- Output voltage: ≥ 10.7 V DC (50 mA)
- Supply voltage range: Loop-fed, no external supply needed
- CE CE
- DNV 23.0189 X certificate
- Short-circuit-proof: Yes
- Electromagnetic compatibility: Tested according to the following standards and regulations: EN 61326-1 Industrial use, NAMUR NE 21
- Interference radiation: Interference radiation
- Ship building approval: Ship building approval
- INMETRO: INMETRO
- IEC/EN 61326-3-2
- Galvanic isolation between input and output: Yes
- Supply: Supply
- Insulation: Double/reinforced insulation
- Shipbuilding data: Shipbuilding data
- Temperature B
- Humidity b
- Vibration A
- EMC A
- Enschnung: Schutzabdeckung auf die Reihenklemme am Schallend beiliegende Schutzabdeckung auf
- Rated insulation voltage 162 Veff (input / output)
- Testing voltage 2.5 kV AC (50 Hz, 60 s)
- Safety specifications: Safety specifications
- Max. Output voltage Uo 19.2 V
- Max. Output current IO 185 mA
- Max. Output power Po: 888 mW
- Maximum safety voltage 253 V AC (≤ 2000 m);125 V DC (≤ 2000 m);121 V AC (> 2000 m ... 3000 m);110 V DC (> 2000 m ... 3000 m);33 V AC/DC (> 3000 m ... 4000 m);33 V AC/DC (> 4000 m ... 5000 m).
- CCC / China-Ex: CCC / China-Ex
- GB standard GB standard
- Number of outputs: 1
- Galvanic isolation: Galvanic isolation
- Power consumption 1.4 W
- Signal: Voltage: Signal: Voltage
- Number of inputs: 1
- Input signal voltage: 19.2 V DC ... 30 V DC (24 V DC, -20 % ... 25 %)
- Ex-Installation (EPL): GC;Div. 2
- Galvanic isolation Input / Output IEC / EN 60079-11: Galvanic isolation Input / Output IEC / EN 60079-11
- Ex i circuits (EPL): Ga;Da;Ma;Div. 1
- Max. Internal capacitance CI: 11 nF
- Safety integrity level (SIL, IEC 61508): Safety integrity level (SIL, IEC 61508)
- IIA (single circuit): Max. outer inductance Lo / max. outer capacitance Co: 7 mH / 6.1 µF
- IIB/IIIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 4 mH / 1.53 µF
- IIC (single circuit): Max. external inductance Lo / max. external capacitance Co: 0.8 mH / 240 nF
- I (single circuit): Max. external inductance Lo / max. outer capacitance Co: 10 mH / 8.7 µF
- Height range: > 4000 m ... 5000 m
- Current limit > 50 mA
- Response time < 50 ms
- Idling voltage > 16 V DC
- Galvanic isolation Input / Output IEC / EN 60079-7: Galvanic isolation Input / Output IEC / EN 60079-7
- Output resistance: ≥ 103 Ω (internal resistance Ri)
- Altitude range (IEC/EN 61010-1): Height measurement range (IEC/EN 61010-1)
- Altitude range (IEC/EN 60079-11): Height measurement range (IEC/EN 60079-11)
- Altitude range (IEC/EN 60079-7): Height measurement range (IEC/EN 60079-7)
- Galvanic isolation Input / Output IEC / EN 61010-1: Galvanic isolation Input / Output IEC / EN 61010-1
- Type
MINI MCR-EX-SD-16-50-LP-PT
- Product type
Valve controller
- Input signal (current) (max.)
50 mA
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 119.2 x 6.2 x 109.81 mm
- Connection
Push-in spring-loaded terminal
- Output (voltage)
≥ 10.7 V DC (50 mA)
- Output (current)
185 mA
- Input signal (voltage)
19.2 V DC ... 30 V DC
- Input signal (current)
50 mA
- Content
1 pc(s)
- Width
6.2 mm
- Height
109.81 mm
- Length
119.2 mm
- Max. ambient temperature
49 °C
- Min. ambient temperature
-40 °C
- Operating voltage U(B)
schleifengespeist. keine externe Versorgung notwendig
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Depth
119.2 mm
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565215 Phoenix Contact MINI MCR-EX-SD-16-50-LP-PT 1157870 Valve controller 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3565215 Phoenix Contact MINI MCR-EX-SD-16-50-LP-PT 1157870 Valve controller 1 pc(s)
Description
Ex i valve control module for controlling Ex i solenoid valves in hazardous areas. Open circuit voltage: 16 VDC, current limit: 50 mA, standard configuration, loop-powered, safety integrity level (SIL, IEC 61508): 3, push-in connection
