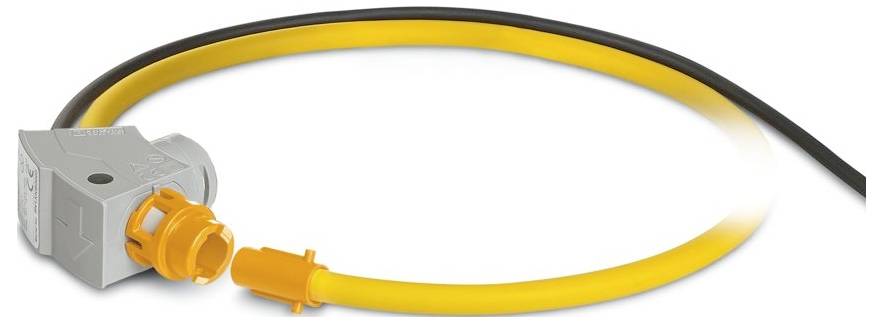

Image similar
Phoenix Contact PACT RCP-D95 2904890 Rogowski coil Primary current 4000 A Line feed-through diameter:95 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Spool
- Input current (current) 4000 A
- Line feed-through diameter 95 mm
Technical specifications
- Product family: Rogowski coil
- Material: housing: PC
- Ambient conditions: Environmental conditions
- Ambient temperature (storage/transport): -40 °C ... 80 °C (measuring coil)
- Altitude: < 2000 meters
- Standards/regulations: IEC 61010-2-030;IEC 61869-10
- Note: Measuring coil
- Insulation properties: Insulation properties
- Pollution level: 2
- Permissible air humidity (operation): 5 % ... 95% (no condensation)
- General: General
- Length: 3 m
- UL 61010 Recognized
- UL, USA / Canada: UL, USA / Canada
- Diameter 95 mm
- Frequency
- Certificate: CMIM compliant
- Signal
- Designation: Measuring coil
- Insulation: Double insulation
- Rated insulation voltage 1000 V AC (RMS CAT III);600 V AC (RMS CAT IV)
- Testing voltage 10.45 kV DC (60 s)
- Conductor construction signal line: 2x 0.22 mm (signal (tin-plated);1x 0.22 mm (shielding (tin-plated)
- Included in set: 2904921 PACT RCP-4000A-1A-D95
- Measuring coil: Measuring coil
- Accuracy class 0.2 (IEC 61869-10: A1)
- Converter type: Rogowski coil
- Frequency range: 40 Hz ... 20000 Hz
- Current transformer: Current transformer
- Output signal (at 50 Hz): 100 mV (without load, at 1000 A)
- Output voltage (at idle): VOUT = M * di/dt
- Output voltage (sinusoidal, idle): 100 mV (VOUT = 2 * π * M * f * I (M = 0.318 μH | Example: At 50 Hz | I = 1000 A))
- Measuring coil in installed condition: Measuring coil in installed condition
- Signal line: Signal line
- Coil material: Elastollan
- Protection class of measuring coil: IP54 (not rated by UL)
- Ambient temperature (operation) (measuring coil): -30 °C ... 80 °C (measuring coil)
- CMIM CLIM
- Product type
Rogowski coil
- Primary current
4000 A
- Line feed-through diameter
95 mm
- Type
PACT RCP-D95
- Input current
4000 A
- Reading category
CAT IV 600 V
- Height
300 mm
- Length
300 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579774 Phoenix Contact PACT RCP-D95 2904890 Rogowski coil Primary current 4000 A Line feed-through diameter:95 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579774 Phoenix Contact PACT RCP-D95 2904890 Rogowski coil Primary current 4000 A Line feed-through diameter:95 mm 1 pc(s)
Description
Rogowski coil with length 300 mm. The diameter of the measuring coil is 95 mm when installed. The Rogowski coil is used for the AC-current measurement of busbars and high-current cables.
