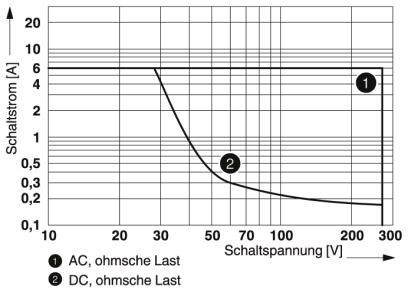

![Graph shows switching current [A] against switching voltage [V] for AC and DC resistive loads. Curve trajectory declines with increasing voltage.](https://asset.conrad.com/media10/isa/160267/c1/-/en/002225817TI02/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/6
Image similar

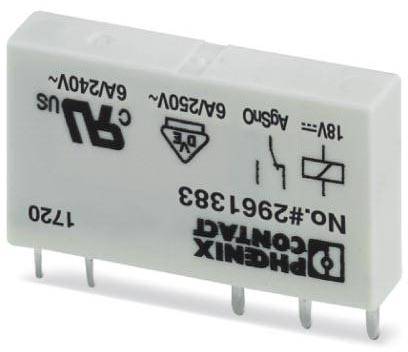

Phoenix Contact REL-MR- 18DC/21 Relay 18 V DC 6 A 1 change-over 10 pc(s) Piece
Packaging type
Piece
Product type
Relay
Coil nominal voltage
18 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V DC/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection class RT III.
- Typical input current at UN: 9 mA
- Minimum switching voltage 5 V (at 100 mA)
- Switching current minimum: 10 mA (at 12 V)
- Inrush current maximum 10 A (4 s)
- Switch-off power (resistive load) maximum:
- 140 W (AT 24 V DC)
- 18 W (AT 60 V DC)
- 23 W (AT 110 V DC)
- 40 W (AT 220 V DC)
- Pollution level 3
- Over voltage category III
- Packaging type
Piece
- Product type
Relay
- Type
REL-MR- 18DC/21
- Coil nominal voltage
18 V DC
- Contact type
1 change-over
- Contact material
AgSnO
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
- Max. switching capacity
140 W
- Connection
Soldering
- Response time
5 ms
- Fall time
2.5 ms
- Durability
2x 10 7 operations
- Features
Washable (RT III)
- Min. temperature
-40 °C
- Max. temperature
+85 °C

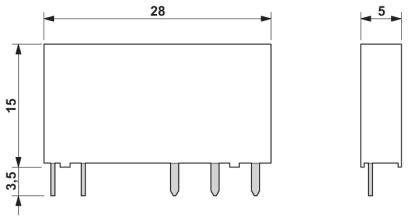

- Width
5 mm
- Height
28 mm
- Depth
15 mm
- Dim
(W x H x D) 5 x 28 x 15 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225817 Phoenix Contact REL-MR- 18DC/21 Relay 18 V DC 6 A 1 change-over 10 pc(s) Piece
Datasheet 2225817 Phoenix Contact REL-MR- 18DC/21 Relay 18 V DC 6 A 1 change-over 10 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225817 Phoenix Contact REL-MR- 18DC/21 Relay 18 V DC 6 A 1 change-over 10 pc(s) Piece
Description
Power contacts up to 6 A.
