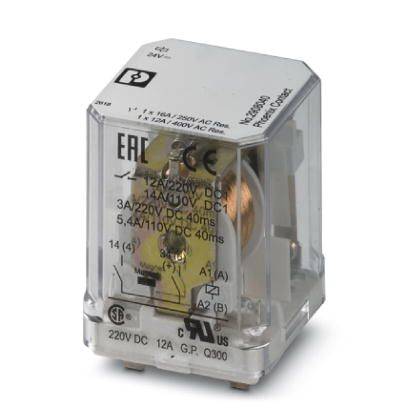

Phoenix Contact REL-PR1-24DC/1/MB Relay 24 V DC 16 A 1 maker 1 pc(s) Piece
Packaging type
Piece
Product type
Relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
440 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection class RT I.
- Typical input current at UN 70 mA
- Minimum switching voltage 5 V (at 24 mA)
- Switching current minimum: 5 mA (at 24 V)
- Maximum inrush current 50 A (20 ms)

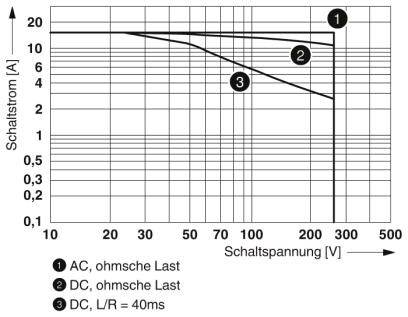

- Switch-off power (resistive load) maximum:
- 384 W (AT 24 V DC)
- 900 W (AT 60 V DC)
- 1540 W (AT 110 V DC)
- 2640 W (AT 220 V DC)
- Minimum switching power 120 mW
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Over voltage category III
- Packaging type
Piece
- Product type
Relay
- Type
REL-PR1-24DC/1/MB
- Coil nominal voltage
24 V DC
- Contact type
1 maker
- Contact material
AgNi
- Switching voltage (max.)
440 V AC
- Switching current (max.)
16 A
- Max. switching capacity
2640 W
- Connection
Jack connector
- Insulation voltage
4 kV
- Response time
20 ms
- Fall time
15 ms
- Durability
2x 10 7 operations
- Features
pluggable

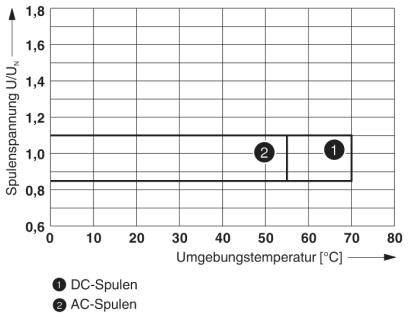

- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
38.6 mm
- Height
36.1 mm
- Depth
45.5 mm
- Dim
(W x H x D) 38.6 x 36.1 x 45.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225720 Phoenix Contact REL-PR1-24DC/1/MB Relay 24 V DC 16 A 1 maker 1 pc(s) Piece
Datasheet 2225720 Phoenix Contact REL-PR1-24DC/1/MB Relay 24 V DC 16 A 1 maker 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2225720 Phoenix Contact REL-PR1-24DC/1/MB Relay 24 V DC 16 A 1 maker 1 pc(s) Piece
Description

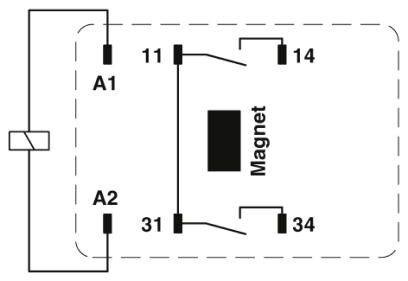

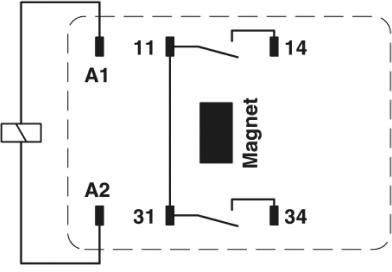

Plug-in high power relay with power contacts, especially for switching high DC loads, 1 NO contact, blow magnet, coil voltage 24 V DC
