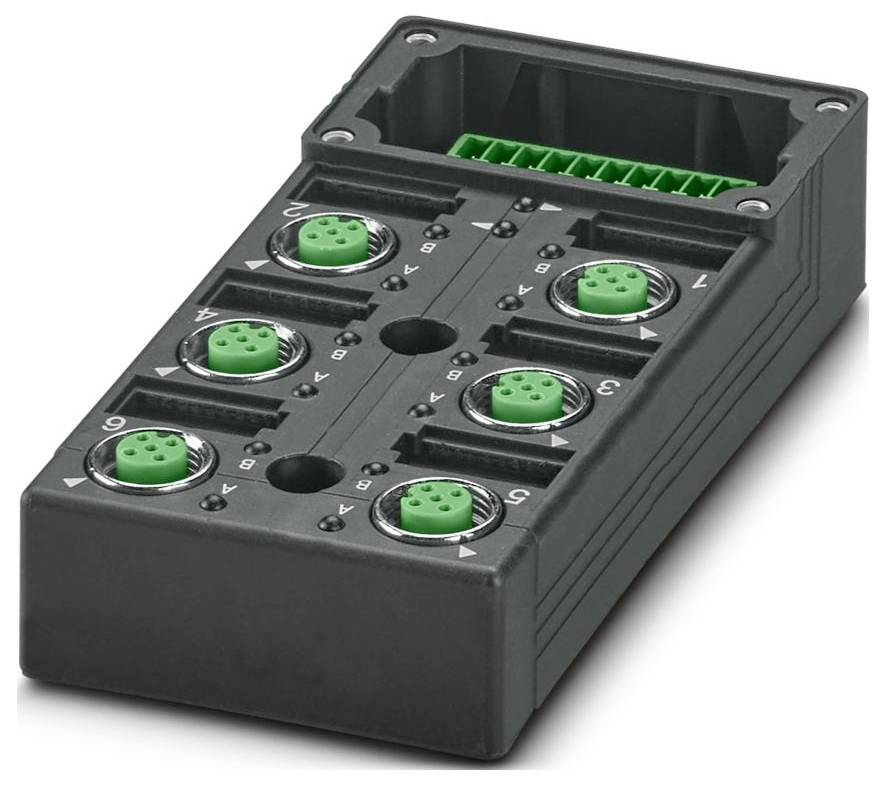

Phoenix Contact SACB-6/ 6-L-C GG SCO 1516742 Connector body M12 splitter + steel thread 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector body
No. of splitters
6-way
Configuration
Single
Type
SACB-6/ 6-L-C GG SCO
Trunk line
Yes
Datasheet (PDF)
Technical specifications
- Number of pins: 4
- NOMINAL VOLTAGE 24 V DC
- Connection type: Pluggable screw connection
- Width 58 mm
- Height: 26 mm
- Flammability class according to UL 94: V0
- Material: housing: PBT
- Ambient conditions: Environmental conditions
- PROTECTION CLASS IP65;IP67;IP69K
- Ambient temperature (operation): -30 °C ... 80 °C
- Standards/regulations: IEC 61076-2-101
- Length: 126 mm
- Material contact surface: Gold-plated
- Note on the application: Unused slots must be closed before commissioning. Suitable locking elements are given under "Accessories".
- Mounting instructions: CAUTION: When laying cables, observe the permissible bending radii, as the degree of protection is endangered by excessive bending forces. Catch mechanical loads before the connector, e.g. Through cable ties.
- M12 connector
- Application: Standard, extended requirements
- Coding: A
- LED: Yes
- Material contact: Copper alloy
- Number of slots: 6
- Operating voltage maximum Umax 30 V DC
- Rated current total:10 A;2x 8 A (with voltage separation)
- Current carrying capacity per path max. 2 A.
- Max. Current rating per slot 4 A
- Status display available: Yes
- Material threaded sleeve: Die-cast zinc
- Material O-ring seal, NBR
- Material contact carrier: PA
- Material contact root cable side: Cu alloy
- Material contact surface Base cable side: Gold plated
- Material compound PUR
- Material contact carrier Main cable side: PA 6.6 V0
- Local diagnostics: Supply voltage per module LED green;status display I/O LED yellow
- Monitored function: Supply voltage per module
- Optical representation: Green LED
- Product type
Connector body
- Configuration
Single
- Type
SACB-6/ 6-L-C GG SCO
- Trunk line
Yes
- No. of splitters
6-way
- Status indicator
LED
- Signal type
PNP
- Connection
Push-fit screw connector
- Width
58 mm
- Length
126 mm
IP65
IP67
IP69K
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
80 °C
- Min. temperature
-30 °C
- Connector type (distribution boxes)
M12 socket
- Case material
PBT
- Total no. of pins
4
- Manufacturer part #
1516742
- Content
1 pc(s)
- Number of pins
4
- Height
26 mm
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Operating voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3569133 Phoenix Contact SACB-6/ 6-L-C GG SCO 1516742 Connector body M12 splitter + steel thread 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3569133 Phoenix Contact SACB-6/ 6-L-C GG SCO 1516742 Connector body M12 splitter + steel thread 1 pc(s)
Description
Basic distribution box, application: Standard, extended requirements, connection type: M12-socket metal, number of slots: 6, pole number: 4, coding: A, slot assignment: Simple, status display: Yes, PNP; Trunk connection: pluggable screw connection, shielding: no.
