Phoenix Contact SSR 2905215 10 A Switching voltage (max.): 253 V AC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
19.2 V DC
Control voltage (max.)
28.8 V DC
Switching voltage (max.)
253 V AC
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
PLC-HPT-24DC/230AC/10
- Connection
Push-in connector
- Control voltage (min.)
19.2 V DC
- Control voltage (max.)
28.8 V DC
- Control voltage range
19.2 - 28.8 V DC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
253 V AC
- Current load (max.)
10 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
253 V AC
- Max. output current
10 A
- Permanent current (max.)
10 A
- Content
1 pc(s)
- Nominal control voltage
24 V DC
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1830536 Phoenix Contact SSR 2905215 10 A Switching voltage (max.): 253 V AC 1 pc(s)
Description

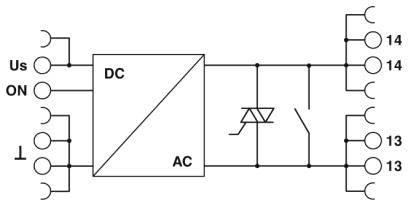

PLC-interface, hybrid solid-state relays including bypass relay with push-in connection, for mounting on NS 35/7.5, input: 24 V DC, output: 24V AC 253 V AC/10 A
