Name: Phoenix Contact SUBCON-PLUS-ARCNET/AX/SC038 2903271 D-SUB plug Number of pins: 9 Screw terminal 50 pc(s)
Brand: Phoenix Contact
SKU: 2225486

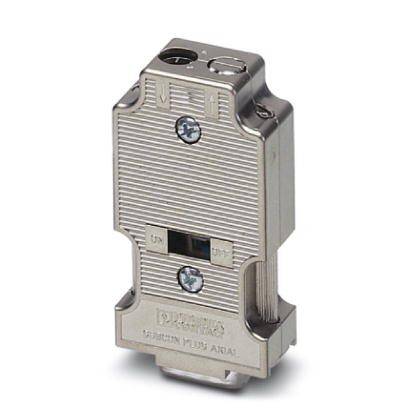

A silver, rectangular electrical component with screws and labelling on the front face, suitable for industrial applications.

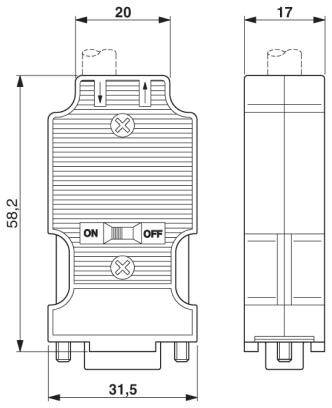

Technical drawing of a switch with dimensions: 58.2 mm high, 31.5 mm wide. 'ON' and 'OFF' marked. 20 mm and 17 mm width indicated.

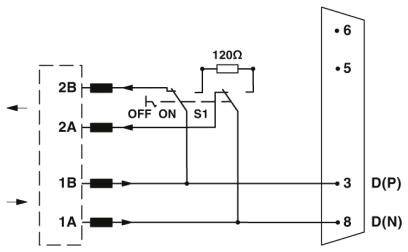

Circuit diagram of a connector with terminals 1A, 1B, 2A, 2B. Switch S1 has positions 'ON' and 'OFF'. Resistance of 120Ω.

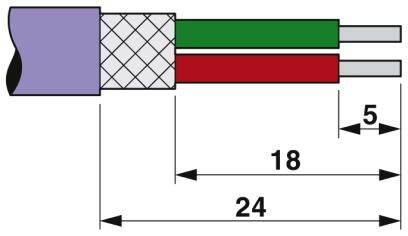

Diagram of a cable with two wires, one green and one red, with a total length of 24 units, with one section measuring 18 units long.

1/4

Image similar

Product type

D-SUB plug

Connector type

Plug

Number of pins

Connection

Screw terminal

Content

50 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-SUB bus plug

D-SUB plug
Number of pins: 9

Technical specifications

Product type: D-SUB plug

Connector type: Plug

Number of pins: 9

Connection: Screw terminal

Content: 50 pc(s)

Manufacturer part #: 2903271

Features: + switch

Type: SUBCON-PLUS-ARCNET/AX/SC038

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2225486 Phoenix Contact SUBCON-PLUS-ARCNET/AX/SC038 2903271 D-SUB plug Number of pins: 9 Screw terminal 50 pc(s)

User & Safety Instructions

User & Safety Instructions 2225486 Phoenix Contact SUBCON-PLUS-ARCNET/AX/SC038 2903271 D-SUB plug Number of pins: 9 Screw terminal 50 pc(s)

Description

D-SUB plug, 9-pin, pin, axial design with two cable feeds, bus system: ARCNET, terminating resistor can be connected via sliding switch, pin assignment: 3, 8; screw connection terminals
