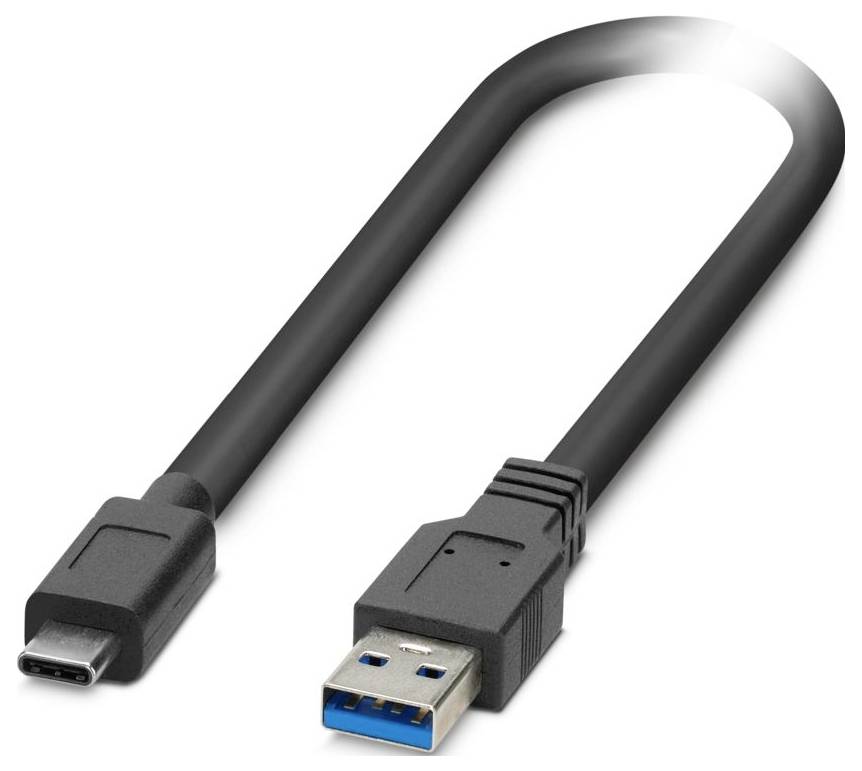

Phoenix Contact USB cable USB 3.2 2nd Gen USB-A plug, USB-C® plug 3.00 m Shielded 1333190
Product type
USB cable
Cable specs
USB 3.2 2nd Gen
Version
Connection cable
Connection type
USB-A to USB-C®
Connections
USB-A plug
USB-C® plug
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: Straight USB type C connector
- Number of poles: 9
- Width 15.8 mm
- Height: 7.9 mm
- Mechanical Data: Mechanical Data
- Rated current 5 A
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Insulation properties: Insulation properties
- Overvoltage category I
- Pollution level: 2
- Length 45 mm.
- Transmission speed 5 GBit/s
- Cable outside diameter 5.00 mm
- Test specification: Test specification
- Outer sheath, material: PVC
- Material conductor: Copper
- Cable length 3.00 m
- Shielding: Aluminium-backed film
- Outer sheath, color: Black
- Insulation resistance 10 MΩ
- TESTING VOLTAGE 300 V AC;300 V AC
- Shielded: Yes
- Cable type PVC USB 3.0 black
- Mating cycles 10000
- Track 1: Track 1
- Track 2: Track 2
- Testing voltage wire/wire 300 V AC
- Testing voltage wire/shield 300.00 V AC
- Sensor type USB 3.2 Gen. 2
- Transfer features (category) USB 3.2 1st Gen 2
- Data transfer rate up to 5 GBit/s.
- Cable type (short code): USB
- Bending cycles maximum: 100
- Plug-in force per signal contact < 20.00 N
- Extraction rate per signal contact: < 8 N
- Cable outlet: Straight
- Minimum bend radius: 3.7 x D
- Colour of the housing part: Black
- Plug face USB-A
- PVC USB 3.0 BLACK [USB]: PVC USB 3.0 BLACK [USB]
- Cold load -40 °C/96 h
- Heat stress 85 °C/96 h
- Corrosion load: Salt spray test UL364-26
- Isolation resistance of adjacent contacts: 10 MΩ
- Product type
USB cable
- Cable specs
USB 3.2 2nd Gen
- Version
Connection cable
- Connection type
USB-A to USB-C®
- Connections
USB-A plug
USB-C® plug
- Cable length
3.00 m
- Shielding
Shielding film
- Cable features
Shielded
- Connector version
straight
Copper
- Transfer rate (max.)
5 GBit/s
- Connection type
USB-C®
- Cable type
USB cable
- Shielded
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3585013 Phoenix Contact USB cable USB 3.2 2nd Gen USB-A plug, USB-C® plug 3.00 m Shielded 1333190
User & Safety Instructions
User & Safety Instructions 3585013 Phoenix Contact USB cable USB 3.2 2nd Gen USB-A plug, USB-C® plug 3.00 m Shielded 1333190
Description
USB-cable, design: USB-C, protection class: IP20, cable length: 3 m, pin number: 9, 5 GBit/s, Cable outlet: straight, USB 3.2 Gen. 1
