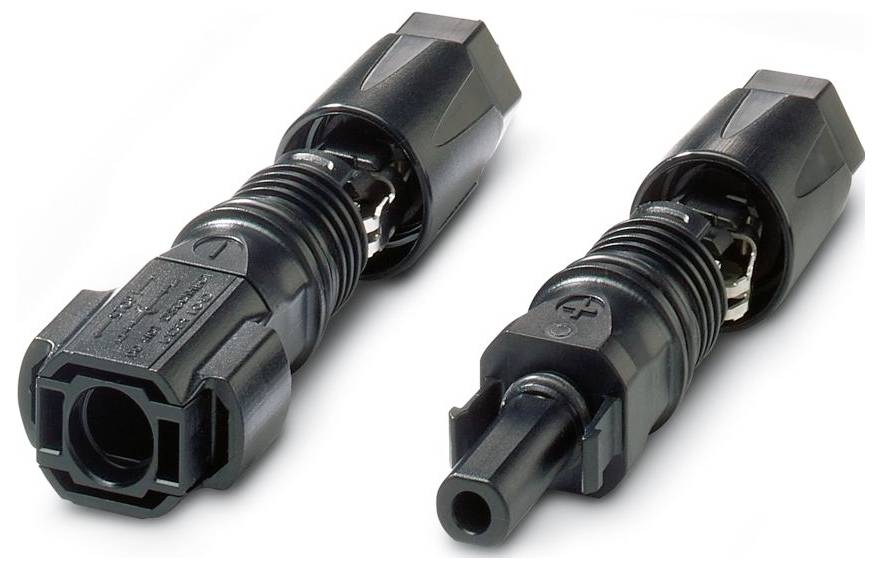

Image similar

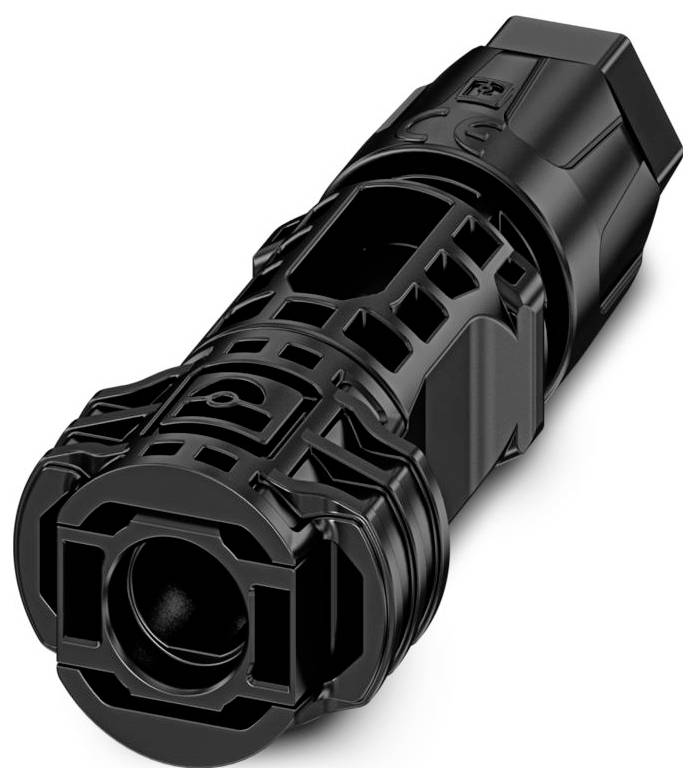

Photovoltaic plug connector 1196766 PV-C1M-C-UNLOCK-HSG Black Phoenix Contact Content: 50 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of data contacts: 0
- Number of power contacts: 1
- Number of control contacts: 0
- Rated current In:38 A.
- Coating Case: Other
- Flammability class of insulation material according to UL94: V0
- For cable outside diameter 5-5 mm
- Pin contact type
- Min Number of mating cycles: 100
- With ground wire: No.
- Protection class (IP), assembled IP66
- Surrounding temperature 85-85 °C
- Pollution level: 2
- Contact coating material: Other
- Housing material: Other
- Packaging type
Piece
- Type
PV-C1M-C-UNLOCK-HSG
- Product type
Photovoltaics connector
- Nominal current
38 A
- Nominal current - rounded value
38 A
- Total no. of pins
1
IP66
- Connection
Crimp
- Factory colour
Black
- Connection method
Crimp
- Max. diameter
8 mm
- Manufacturer part #
1196766
- Content
50 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 8 mm
- Number of pins
1
- Connector type
Pin
- Max. temperature
85 °C
- Min. temperature
85 °C
- Leading contact (PE)
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565916 Photovoltaic plug connector 1196766 PV-C1M-C-UNLOCK-HSG Black Phoenix Contact Content: 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3565916 Photovoltaic plug connector 1196766 PV-C1M-C-UNLOCK-HSG Black Phoenix Contact Content: 50 pc(s)
Description
Photovoltaic plug connector, product family: SUNCLIX, color: Black, pole no.: 1, wire cross-section min.: 2.5 mm2, wire cross-section max.: 6 mm², rated voltage: 1500 V DC, rated current: 38 A, connection type: Crimp, contact type: Pin, cable diameter min.: 5 mm, cable diameter max.: 8 mm
