Pichler Modellbau Mini servo Digital servo Gear box material: Metal Connector system: Uni (Graupner / JR / Futaba)
EAN:
Part number:
Item no:
Highlights & Details
Pichler Modellbau Mini servo Digital servo Gear box material: Metal Connector system: Uni (Graupner / JR / Futaba)
- Housing complete aluminum / CNC (black anodized)
- Metal transmission
- 2 ball bearings
- Coreless motor
Technical specifications
- Actuating power 2.7kg at 7.4V
- Actuating time 0.10s at 7.4V
- Frequency 1520µs / 330hz
- Product type
Mini servo
- Model
master servo DS2306
- Dim
(L x W x H) 23 x 6 x 25 mm
- Length
23 mm
- Width
6 mm
- Height
25 mm
- Voltage
High
- Weight
9 g
- Actuation time (7.4 V)
0.10
- Gear box
Metal
- Type of bearing
Double ball bearing
- Servo technology
Digital servo
- Connector system
Uni (Graupner / JR / Futaba)
- Operating voltage
3.7 - 8.4 V
- Max. operating voltage
8.4 V
- Min. operating voltage
3.7 V
- Manufacturer part #
15131
- for brands
Graupner
- Intended use
Tuning
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451104 Pichler Modellbau Mini servo Digital servo Gear box material: Metal Connector system: Uni (Graupner / JR / Futaba)
Description

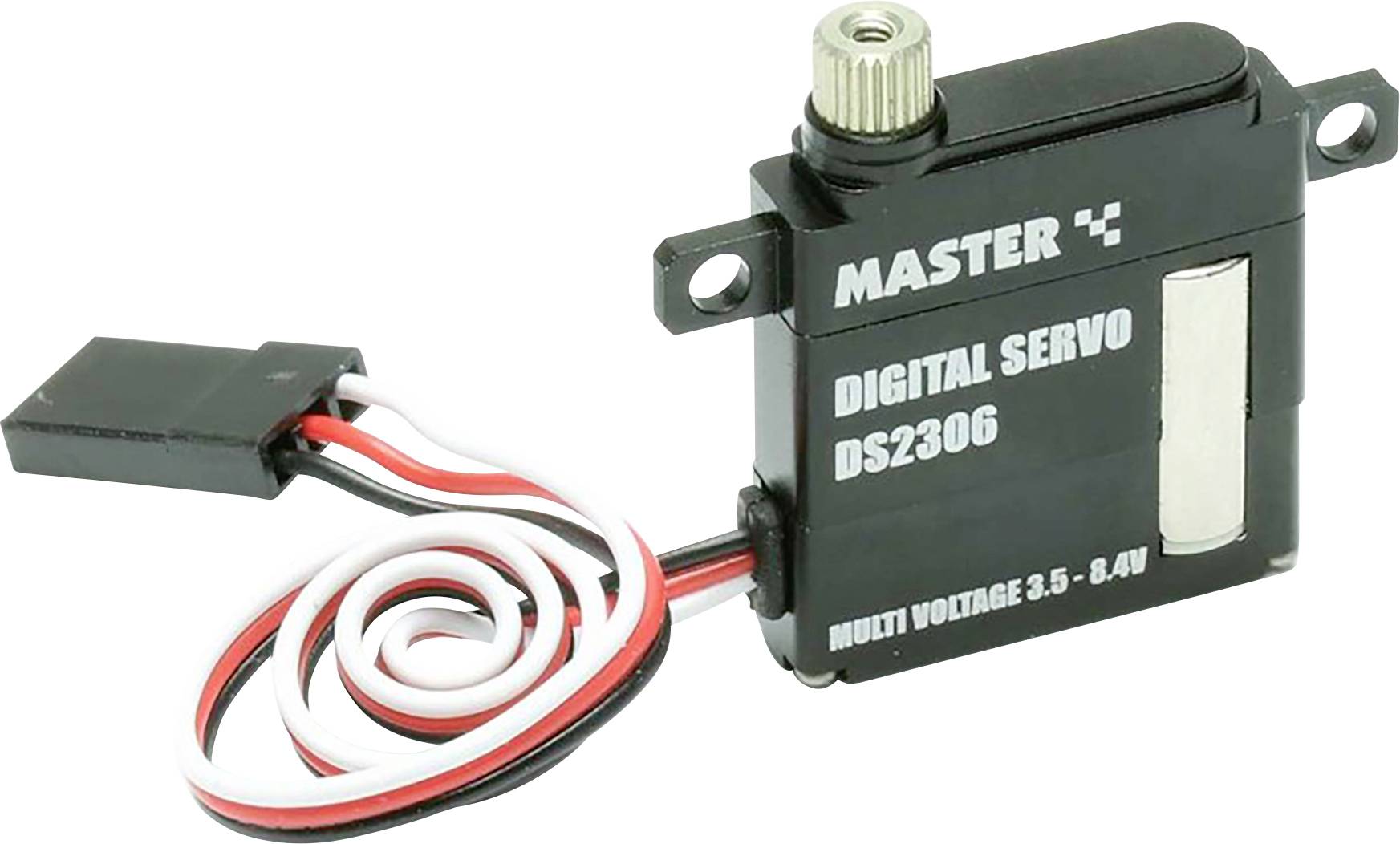

High-quality, small digital servo in aluminum casing with metal gear. Only 6mm wide! Perfect also for F3K models!
This text is machine translated.
This text is machine translated.
Scope of delivery
- master servo DS2306
- User manual.
