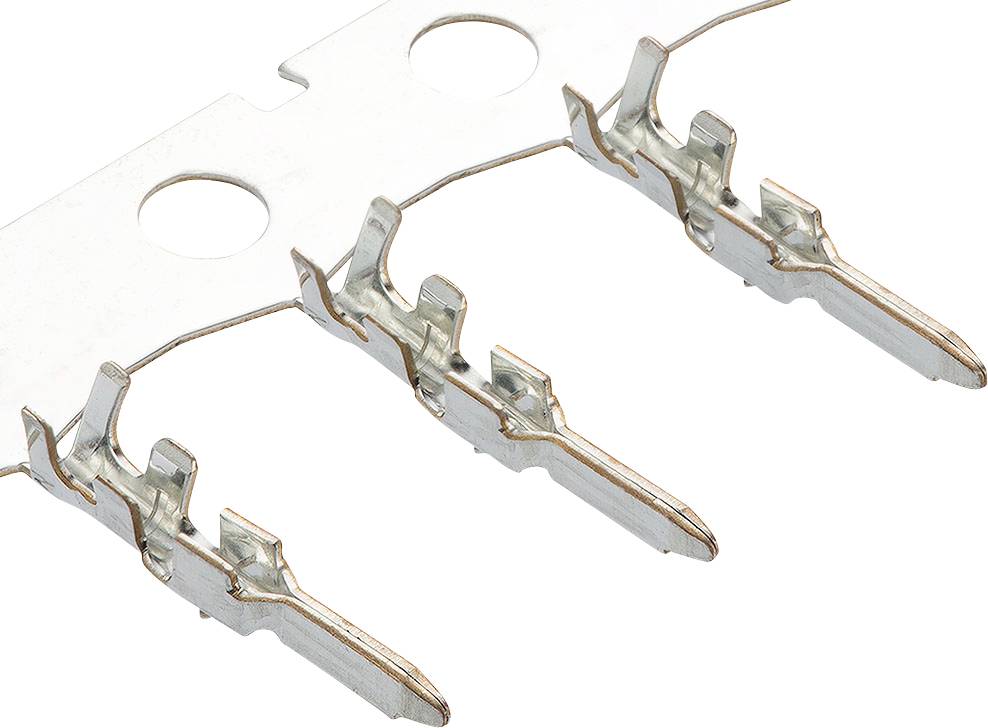

Image similar
PicoBlade 1.25 501338000 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Crimp contact
Connector type
Plug
AWG
32 - 28
Connection
Crimp
Press-in
Datasheet (PDF)
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Crimp contact
- Connector type
Plug
32 - 28
- Connection
Crimp
Press-in
- Manufacturer part #
501338000
- Content
1 pc(s)
- Contact material
Phosphorus bronze tin plated
- Type
501338000
- Engineering Part No
50133-8000
- Engineering Series Name
WtW Plug Term
- Engineering Series No
50133
Documents & Downloads
Datasheet
Datasheet 3036051 PicoBlade 1.25 501338000 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3036051 PicoBlade 1.25 501338000 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 3036051 PicoBlade 1.25 501338000 Molex Content: 1 pc(s)
Description
1.25mm Pitch, PicoBlade Male Crimp Terminal, Tin (Sn) Plating, 28-32 AWG, Reel
