Name: Picotronic Alignment laser Line 30 mW
Brand: Picotronic
SKU: 2987426

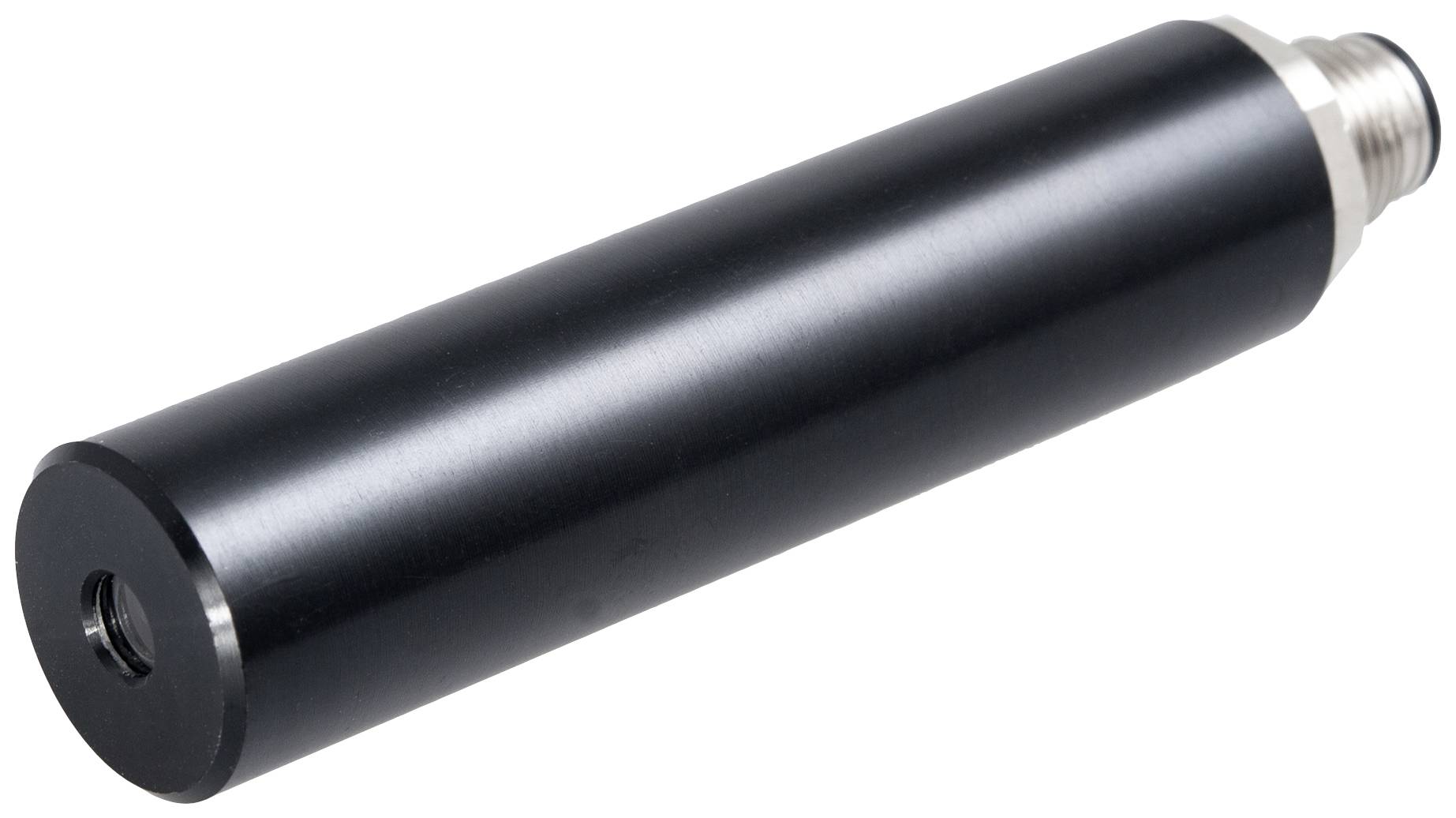

Black cylindrical metal cylinder with silver threading at one end, set against a white background.

'Einstein-Rosen Bridge: Red horizontal beam forms a straight line in dark space; concept of wormholes illustrated.'

A circular saw cuts through a wooden board. A red laser marks the cutting line.

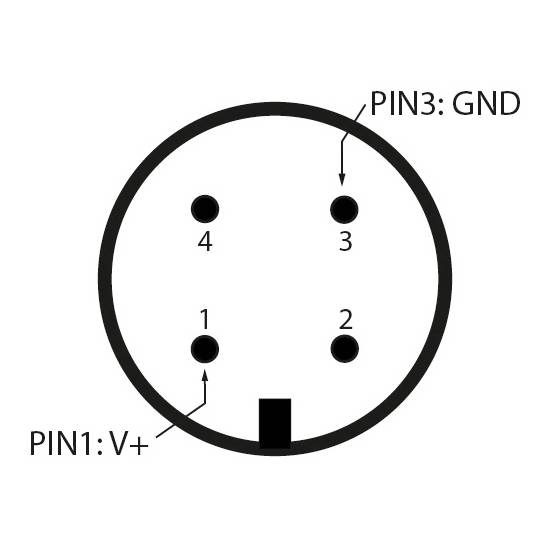

'Diagram of a connector with four pins. PIN1: V+, PIN3: GND. Numbered pins: 1, 2, 3, 4. PIN3 is specifically highlighted.'

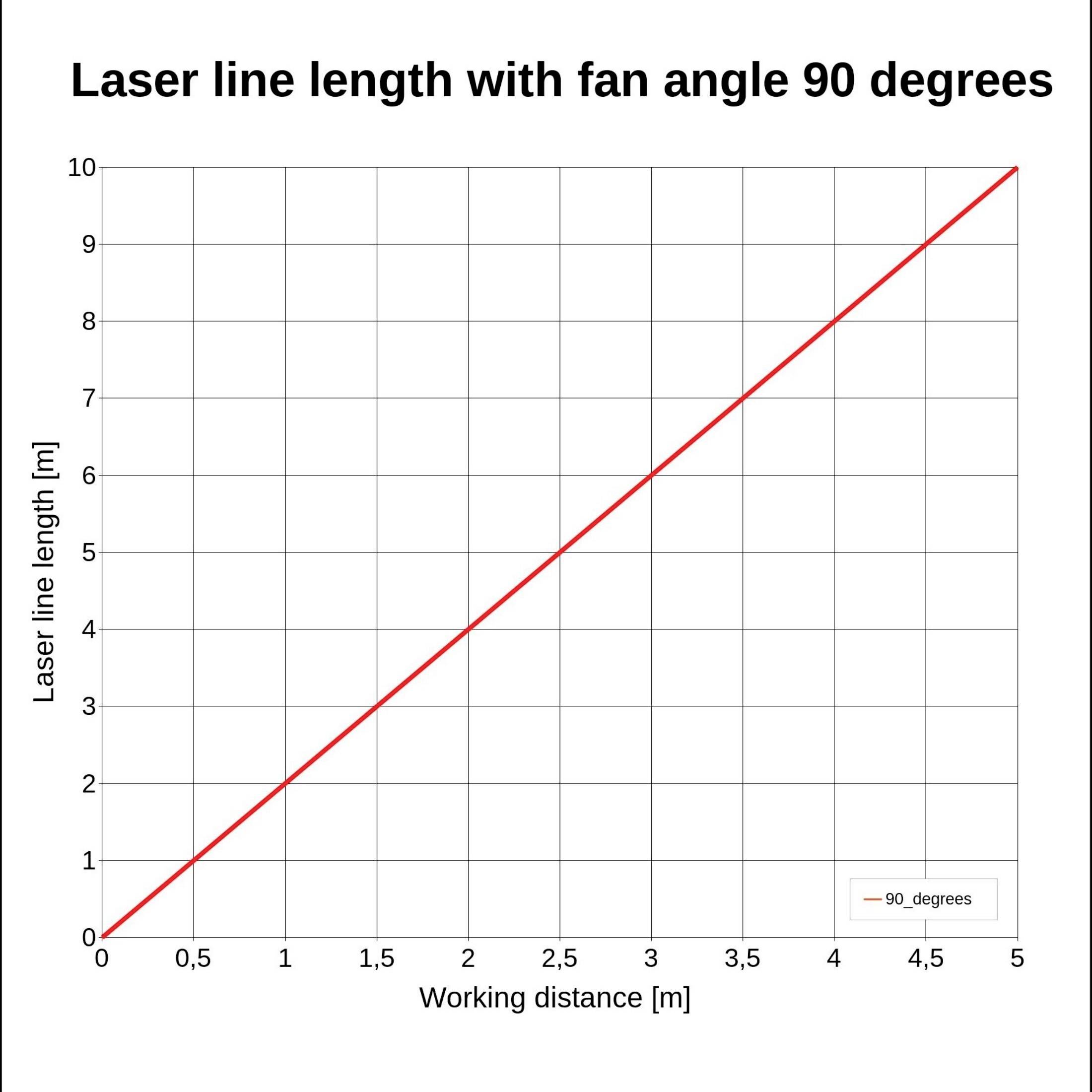

'Diagram: Laser line length at a 90-degree angle shows a linear increase from 0 to 9 metres over a working distance of 0 to 5 metres.'

1/5

Product type

Alignment laser

Emission characteristics

Line

Wavelength

658 nm

Power

30 mW

(Ø)

5.5 mm

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Line laser, red, 650nm, 30mW, 90°, laser class 2M, focus 3M, 24V DC, 20x80mm, M12 connector without cable

Laser category: 2M
Emission characteristics: Line

Technical specifications

Material: Aluminium
Optical power 30 mW
Lifetime 10,000 h
Operating temperature: - 20 °C to 50 °C
Storage temperature: -40°C to 80 °C.
Beam form: Line
Class 2M laser
Divergent: H - 1.0 mrad
Aperture angle: 90 °
3 m operating distance
Optics: Anti-reflex coated glass lenses
Laser technology: Single mode diode
Focus: Fixed (3000mm)
Potential of the housing: Isolated
Outlet diameter of optical 5.5 mm
Black enclosure
Protective lens: Yes
IP 64 protection

Product type: Alignment laser

Emission characteristics: Line

Focus properties: 3000 mm fixed-focus

Wavelength: 658 nm

: 30 mW

(Ø): 5.5 mm

Length: 80 mm

Laser category: 2M

Angular aperture: 90°

Beam divergence: 1.0 mrad

Clearance: 3 m

Operating voltage: 24 V DC

Operating current: 40 mA

Material: Aluminium

Dim: (Ø x L) 5.5 mm x 80 mm

Weight: 63 g

RoHS-compliant: Yes

Width: 20 mm

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987426 Picotronic Alignment laser Line 30 mW

Information

Information 2987426 Picotronic Alignment laser Line 30 mW

Conformity certificate

Conformity certificate 2987426 Picotronic Alignment laser Line 30 mW

Features

Line laser, red, 650nm, 30mW, 90°, laser class 2M, focus 3M, 24V DC, 20x80mm, M12 connector without cable
The LH650-30-24(20x80)-F3000-M12 is a line laser for projection of a red laser line. The laser module emits radiation of the wavelength 658 nm. The laser has a compact design (20x80mm). The service life of the laser module is greater than 10,000 hours. The angle of 90° generates a line of 6 m in length at a distance of 3M. This line laser is used in laser marking systems, for component positioning, in industry, trade, hobby and show sector. This module is in the class 2M laser.
Radiation characteristic: Line, line thickness 1.5mm@3m
Optical output: 30mW (laser class 2M); focus 3M
Compact design: 20x80mm; opening angle: 90°; axis deviation: Up to 3.0°, M12 connector without cable
The opening angle (90°) generates a laser line length of 6m at a working distance of 3M.
For applications in e.g. laser marking systems, the robot technology and the show area. Voltage supply 24V. You can use our power supply unit Picotronic LFNT-24-C-M12, for example
This text is machine translated.

Description

Features

Line laser, red, 650nm, 30mW, 90°, laser class 2M, focus 3M, 24V DC, 20x80mm, M12 connector without cable
The LH650-30-24(20x80)-F3000-M12 is a line laser for projection of a red laser line. The laser module emits radiation of the wavelength 658 nm. The laser has a compact design (20x80mm). The service life of the laser module is greater than 10,000 hours. The angle of 90° generates a line of 6 m in length at a distance of 3M. This line laser is used in laser marking systems, for component positioning, in industry, trade, hobby and show sector. This module is in the class 2M laser.
Radiation characteristic: Line, line thickness 1.5mm@3m
Optical output: 30mW (laser class 2M); focus 3M
Compact design: 20x80mm; opening angle: 90°; axis deviation: Up to 3.0°, M12 connector without cable
The opening angle (90°) generates a laser line length of 6m at a working distance of 3M.
For applications in e.g. laser marking systems, the robot technology and the show area. Voltage supply 24V. You can use our power supply unit Picotronic LFNT-24-C-M12, for example
This text is machine translated.
