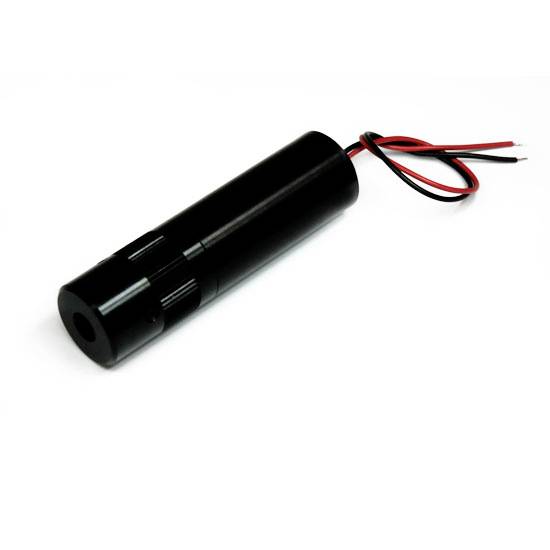

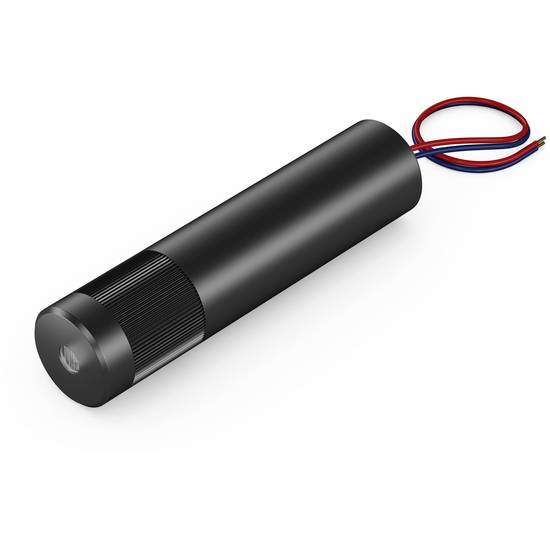

Picotronic Cross line laser Cross 5 mW
Product type
Cross line laser
Emission characteristics
Cross
Wavelength
635 nm
Power
5 mW
(Ø)
7 mm
EAN:
Part number:
Item no:
Highlights & Details
Adjustable isolated cross laser module, red, 60°, 635nm, 5mW, 3V DC, 20x73mm, class 1, with M8 plug
- Laser category: 1
- Emission characteristics: Cross
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Cross
- Class 1 laser
- Divergence B-0.3 mrad
- Aperture angle: 60 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 7 mm
- Black enclosure
- Product type
Cross line laser
- Emission characteristics
Cross
- Focus properties
Selectable focus
- Wavelength
635 nm
5 mW
- (Ø)
7 mm
- Length
73 mm
- Laser category
1
- Angular aperture
60°
- Beam divergence
0.3 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
45 mA
- Material
Aluminium
- Dim
(Ø x L) 7 mm x 73 mm
- Weight
54 g
- RoHS-compliant
Yes
- Width
20 mm
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987593 Picotronic Cross line laser Cross 5 mW
Information
Information 2987593 Picotronic Cross line laser Cross 5 mW
Conformity certificate
Conformity certificate 2987593 Picotronic Cross line laser Cross 5 mW
Description
Features
- Adjustable isolated cross laser module, red, 60°, 635nm, 5mW, 3V DC, 20x73mm, class 1, with M8 plug
- Operating voltage: 3 V DC
- Laser Class 1
- Focus adjustable
- Compact design
- Aperture angle 60 °
