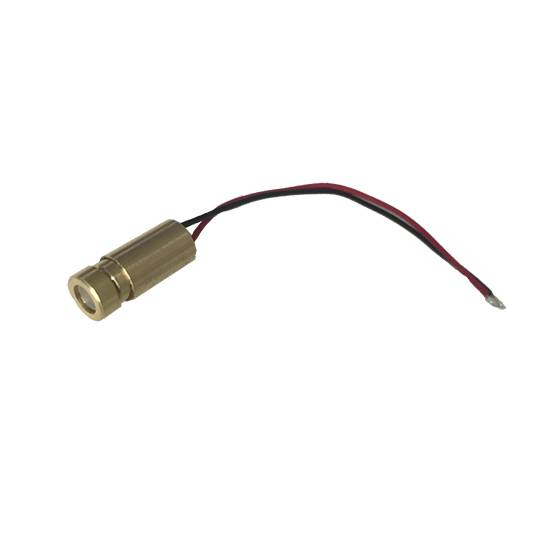

Picotronic DOE laser 70133981
EAN:
Part number:
Item no:
Product type
DOE laser
Length
24 mm
Laser category
2M
Type
70133981
Operating voltage
5 V DC
Highlights & Details
DOE Laser Module 635nm, red, 5mW, DOE Cross – PMMA – 8x1mm 15° @640nm, 5V DC, Ø10x24mm, Laser Class 2M with DOE-DE-R218
- Laser category: 2M
Technical specifications
- Diameter (without bracket) 8 mm
- Thickness (without mounting plate) 1.2 mm
- Material: Polycarbonate
- Optical power 5 mW
- Lifetime 3,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: DOE
- Class 2M laser
- Divergent: H - 1.0 mrad
- Acrylic lens
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 6 mm
- Housing color: Brass
- Protective lens: Yes
- Product type
DOE laser
- Type
70133981
- Length
24 mm
- Laser category
2M
- Operating voltage
5 V DC
- Operating current
30 mA
- Material
Polycarbonate (PC)
- Dim
(L x W) 24 mm x 10 mm
- Weight
8.5 g
- RoHS-compliant
Yes
- Width
10 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987364 Picotronic DOE laser 70133981
Information
Information 2987364 Picotronic DOE laser 70133981
Conformity certificate
Conformity certificate 2987364 Picotronic DOE laser 70133981
Description
Features
- DOE Laser Module 635nm, red, 5mW, DOE Cross – PMMA – 8x1mm 15° @640nm, 5V DC, Ø10x24mm, Laser Class 2M with DOE-DE-R218
- This text is machine translated.
