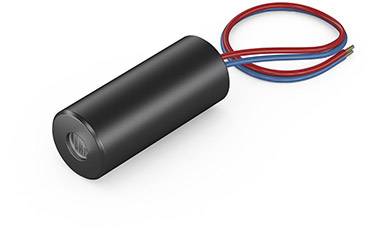

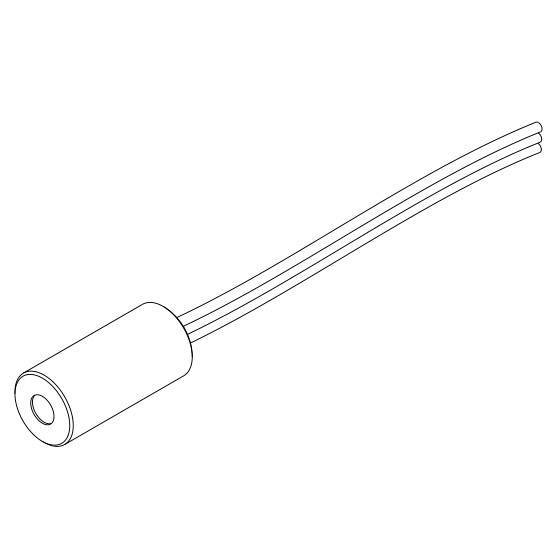

Name: Picotronic Laser module Line Red 3 mW LG 650-3-5 (10 x 21)-F500
Brand: Picotronic
SKU: 1696009

Cylindrical black electrical capacitor with two coloured wires, red and blue, connected at one end.

Technical drawing of a circle with two diameter specifications: 'Ø 10' and 'Ø 4', showing the dimensions of a circle at the centre.

A cylindrical sensor with cable connection. The sensor is designed for detecting objects or signals.

1/3

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

3 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LG 650-3-5 (10 x 21)-F500

Emission characteristics: Line

Focus properties: 500 m fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 3 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.8 mrad

Clearance: 0.5 m

Operating voltage: 5 V DC

Operating current: 25 mA

Material: Brass

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C
