Name: Picotronic Laser module Line Red 5 mW LI 650-5-3 (8 x 26)-F250
Brand: Picotronic
SKU: 1695968

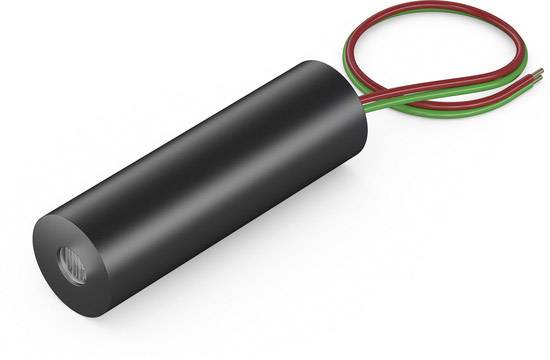

A cylindrical, black sensor with two protruding wires, red and green, for connection to an electrical system.

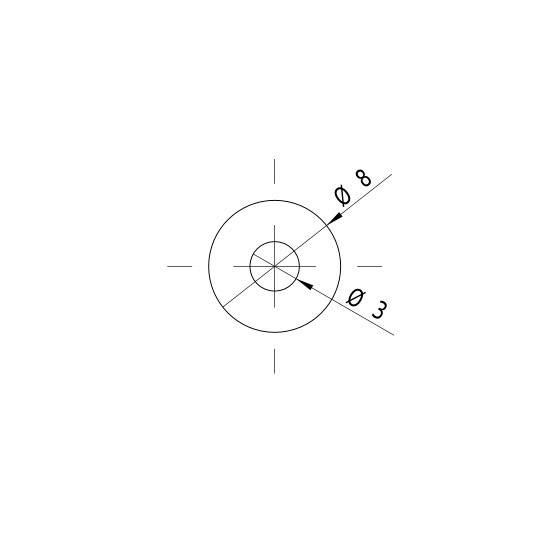

Technical drawing of a circle with two diameters: Ø 8 and Ø 3, marked with dimension lines and central axis.

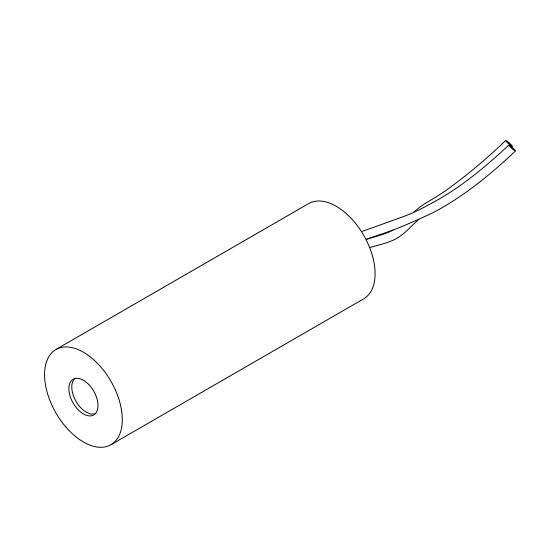

A cylindrical sensor with two protruding wires, depicted in a simple technical drawing.

1/3

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

5 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LI 650-5-3 (8 x 26)-F250

Emission characteristics: Line

Focus properties: 250 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 5 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 1.5 mrad

Clearance: 0.25 m

Operating voltage: 3 V DC

Operating current: 35 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C
