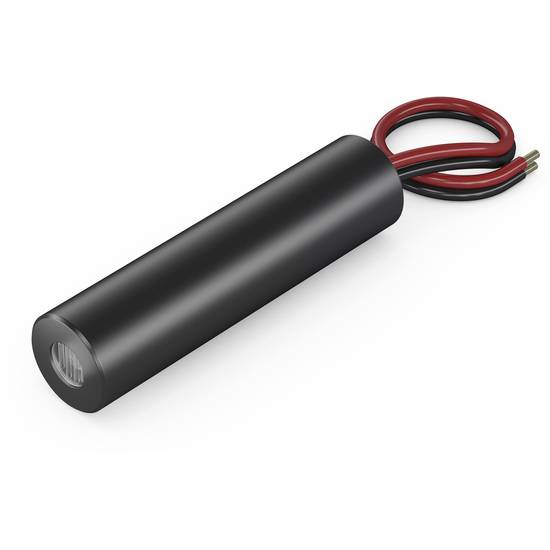

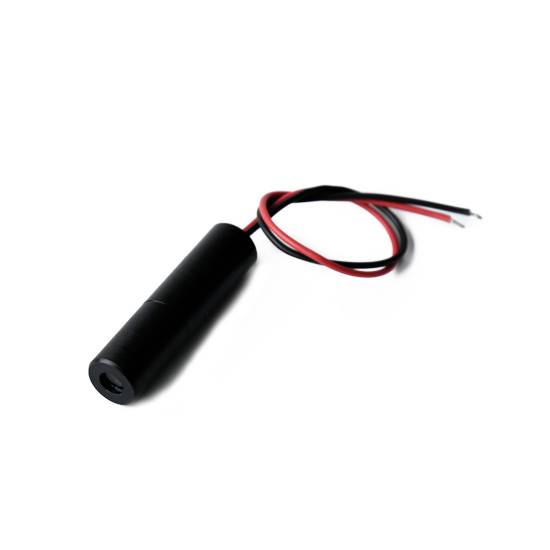

Picotronic Line laser level
EAN:
Part number:
Item no:
Product type
Line laser level
(Ø)
10 mm
Length
40 mm
Laser category
3R
Angular aperture
5 °
Highlights & Details
Insulated lines laser module, red, 5°, 650nm, 5mW, 3V DC, 10x40mm, class 3R
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Laser class 3R
- Divergent: H - 1.0 mrad
- Aperture angle: 5 °
- 0.4 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (400mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (400mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 4.5 mm
- Black enclosure
- Product type
Line laser level
- (Ø)
10 mm
- Length
40 mm
- Laser category
3R
- Angular aperture
5°
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Aluminium
- Dim
(Ø x L) 10 mm x 40 mm
- Weight
6.3 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987387 Picotronic Line laser level
Information
Information 2987387 Picotronic Line laser level
Conformity certificate
Conformity certificate 2987387 Picotronic Line laser level
Description
Features
- Insulated lines laser module, red, 5°, 650nm, 5mW, 3V DC, 10x40mm, class 3R
- Operating voltage: 3 V DC
- Image processing
- Uniform line width
- Compact design
- Class 3R laser
- This text is machine translated.
