Picotronic Line laser level Line 16 mW 70115673
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
16 mW
(Ø)
20 mm
EAN:
Part number:
Item no:
Highlights & Details

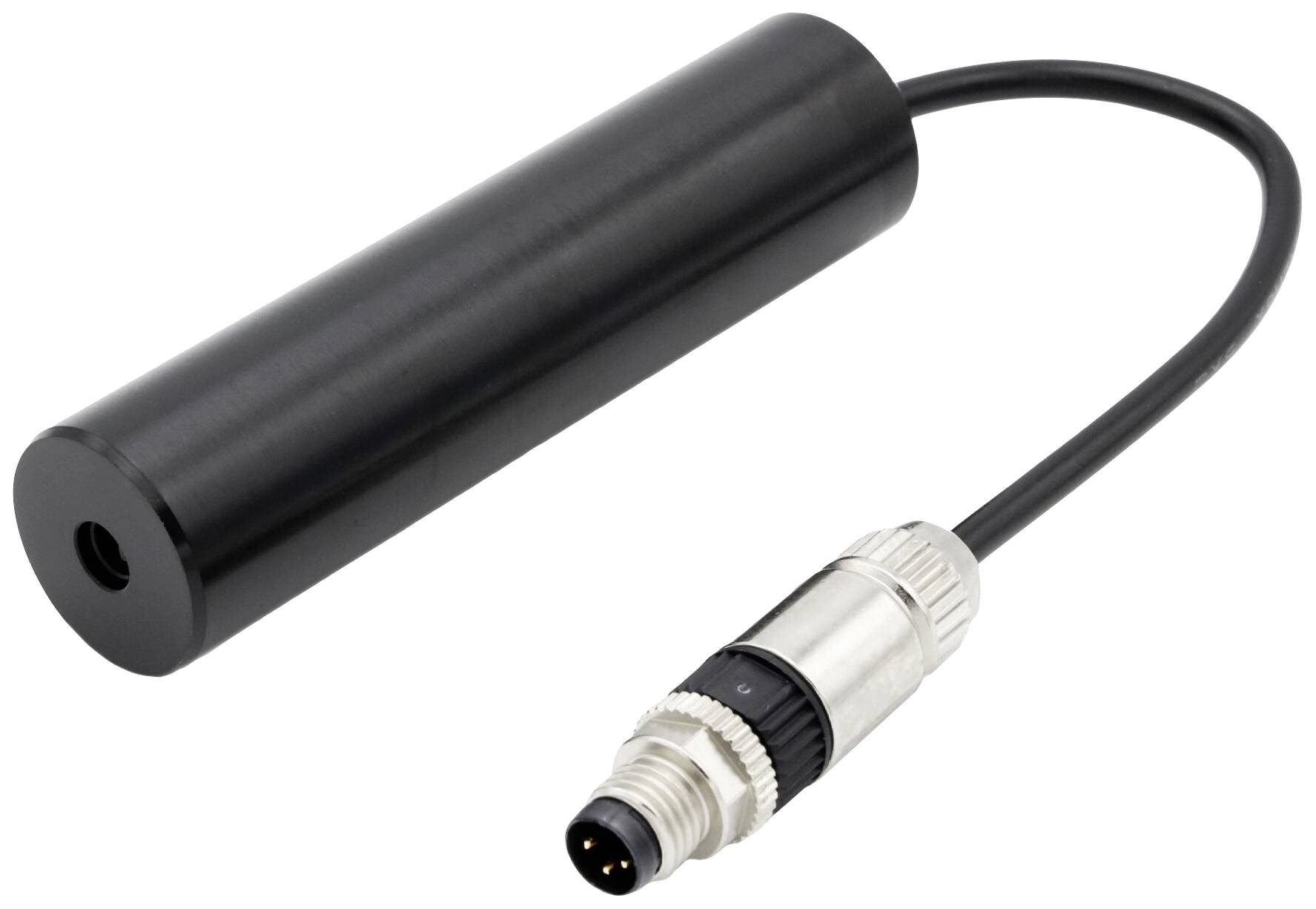

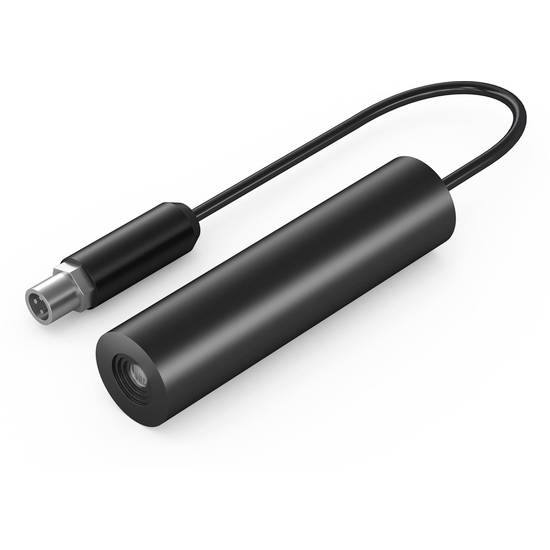

Insulated lines laser module, red, 90°, 650nm, 16mW, 24V DC, 20x80mm, class 2
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 16 mW
- Lifetime 10,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 0.8 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (800mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (800mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type 22AWG, black, 3.6mm
- Outlet diameter of optical 4.5 mm
- Protective lens: No.
- Product type
Line laser level
- Type
70115673
- Emission characteristics
Line
- Focus properties
800 mm fixed-focus
- Wavelength
650 nm
16 mW
- (Ø)
20 mm
- Length
80 mm
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
0.8 m
- Operating voltage
24 V DC
- Operating current
20 mA
- Material
Aluminium

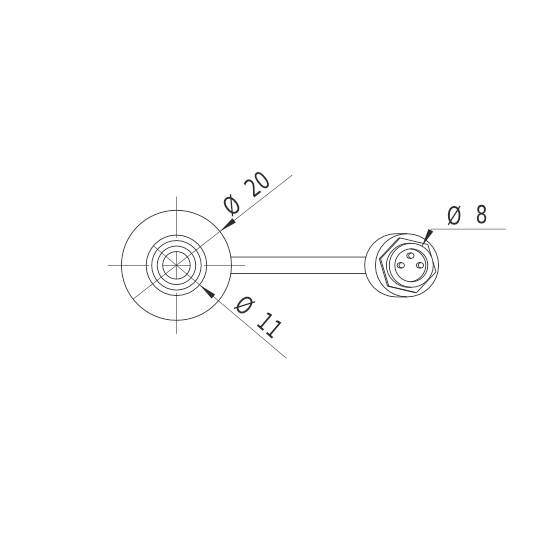

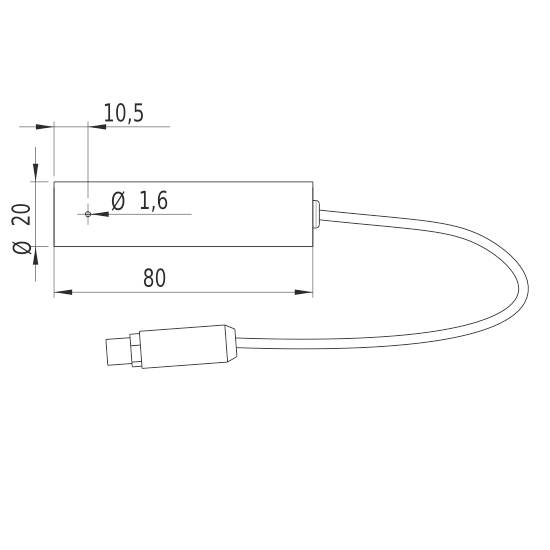

- Dim
(Ø x L) 20 mm x 80 mm
- Weight
63 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987420 Picotronic Line laser level Line 16 mW 70115673
Information
Information 2987420 Picotronic Line laser level Line 16 mW 70115673
Conformity certificate
Conformity certificate 2987420 Picotronic Line laser level Line 16 mW 70115673
Description
Features
- Insulated lines laser module, red, 90°, 650nm, 16mW, 24V DC, 20x80mm, class 2 with plug
- Weight: 63g
- Operating voltage: 24 V DC
- Class 2 laser
- Uniform line width
- Compact laser head
- Protective lens
