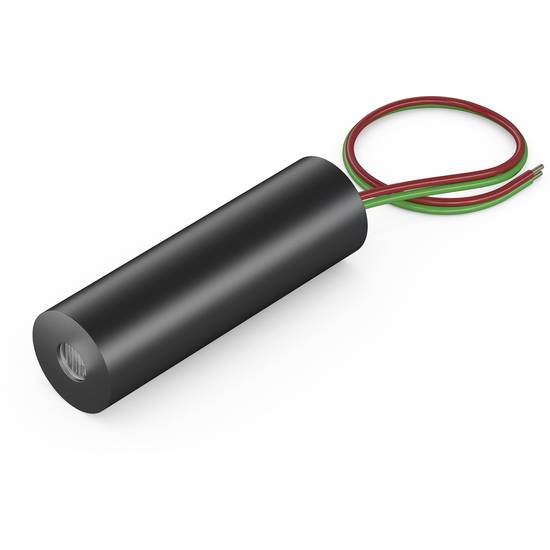

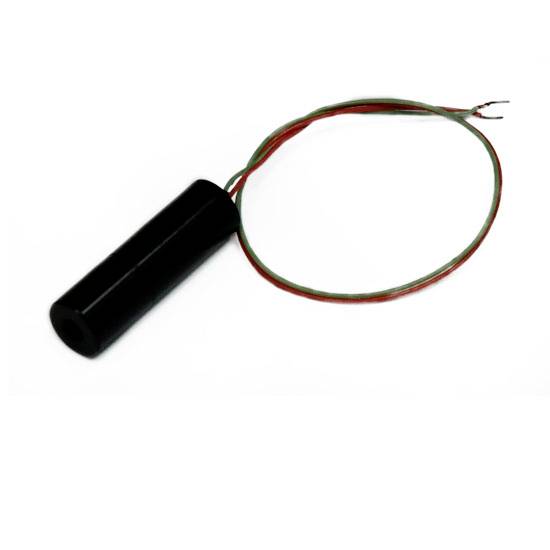

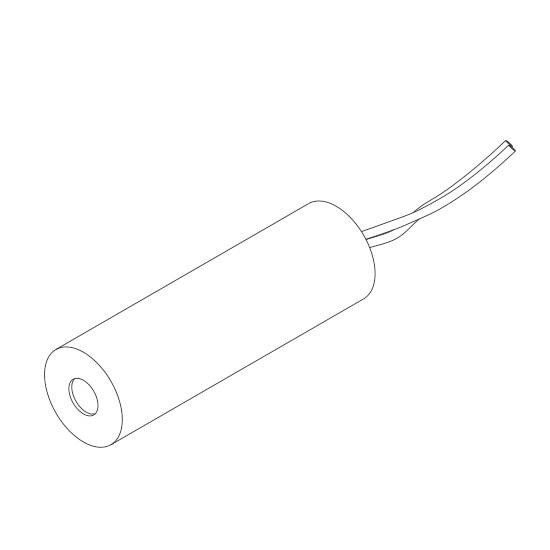

Picotronic Line laser level Line 2.5 mW
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
2.5 mW
Length
26 mm
EAN:
Part number:
Item no:
Highlights & Details
Isolated, modulated red, line laser module, 650nm, 2.5mW, 3V DC, 8x26mm, class 1
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 2.5 mW
- Lifetime 5000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence I - 1.5 mrad
- Aperture angle: 90 °
- 1.5 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (1500mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (1500mm)
- Cable color GND: Blue
- Cable length 100 mm
- Outlet diameter of optical 5.5 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1500 mm fixed-focus
- Wavelength
650 nm
2.5 mW
- Length
26 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.5 mrad
- Clearance
1.5 m
- Operating voltage
3 V DC
- Operating current
35 mA
- Material
Aluminium

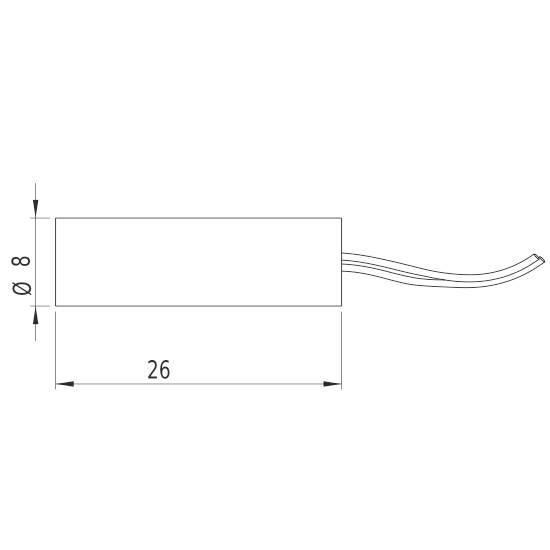

- Dim
(L x W) 26 mm x 8 mm
- Weight
3.5 g
- RoHS-compliant
Yes
- Width
8 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987508 Picotronic Line laser level Line 2.5 mW
Information
Information 2987508 Picotronic Line laser level Line 2.5 mW
Conformity certificate
Conformity certificate 2987508 Picotronic Line laser level Line 2.5 mW
Description
Features
- Insulated, modulated red, line laser module, 650nm, 2.5mW, 3V DC, 8x26mm, class 1
- This text is machine translated.
