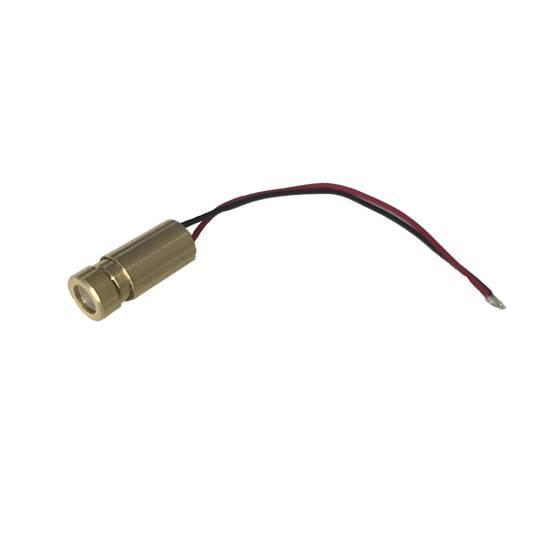

Picotronic Plumb dot laser
Product type
Plumb dot laser
Length
24 mm
Laser category
3R
Operating voltage
6 V DC
Operating current
30 mA
EAN:
Part number:
Item no:
Highlights & Details
Adjustable DOE laser module, red, 635nm, 5mW, 3-6V DC, 10x24mm, class 3R
- Laser category: 3R
Technical specifications
- Material: Brass
- Optical power 3.5 mW
- Lifetime 3,000 h
- Operating temperature: - 20 °C to 50 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergent: H - 1.0 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Adjustable
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 3 mm
- Housing color: Brass
- Product type
Plumb dot laser
- Length
24 mm
- Laser category
3R
- Operating voltage
6 V DC
- Operating current
30 mA
- Material
Brass
- Dim
(L x W) 24 mm x 10 mm
- Weight
8.5 g
- RoHS-compliant
Yes
- Width
10 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987655 Picotronic Plumb dot laser
Information
Information 2987655 Picotronic Plumb dot laser
Conformity certificate
Conformity certificate 2987655 Picotronic Plumb dot laser
Description
Features
- Adjustable DOE laser module, red, 635nm, 5mW, 3-6V DC, 10x24mm, class 3R, can be used in combination with DOE optics
- This text is machine translated.
