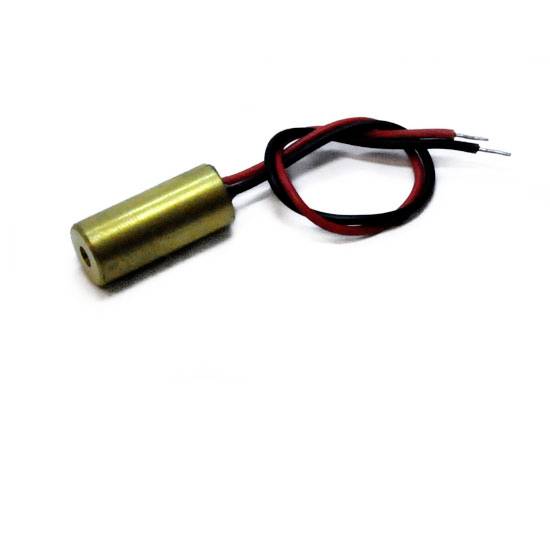

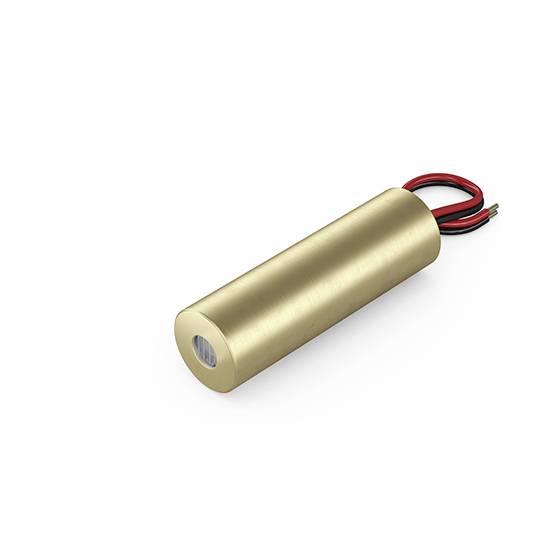

Picotronic Plumb dot laser Dot Brass 1 mW
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
520 nm
Power
1 mW
(Ø)
12 mm
EAN:
Part number:
Item no:
Highlights & Details
Point laser module, green laser diode, 520nm, 1mW, 3V DC, 12x47 mm, class 2
- Brass
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 10,000 h
- Operating temperature: -10°C - 60 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence I - 1.5 mrad
- 20 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Collides
- Potential of the housing: Isolated
- Potential of the housing: IsoletFocus: Collimated
- Cable color GND: White
- Cable length: 150 mm.
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 4.5 mm
- Housing color: Brass
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Brass
- Wavelength
520 nm
1 mW
- (Ø)
12 mm
- Length
47 mm
- Laser category
2
- Beam divergence
1.5 mrad
- Clearance
20 m
- Operating voltage
3 V DC
- Operating current
120 mA
- Material
Aluminium
- Dim
(Ø x L) 12 mm x 47 mm
- Weight
9 g
- RoHS-compliant
Yes
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987565 Picotronic Plumb dot laser Dot Brass 1 mW
Information
Information 2987565 Picotronic Plumb dot laser Dot Brass 1 mW
Conformity certificate
Conformity certificate 2987565 Picotronic Plumb dot laser Dot Brass 1 mW
Description
Features
- Point laser module, green laser diode, 520nm, 1mW, 3V DC, 12x47 mm, class 2
- Power consumption
- Direct green 520nm
