Pizzato Elettrica BN AC3ZA79 Command encoder unit + kill switch EMERGENCY STOP 1 pc(s) Piece

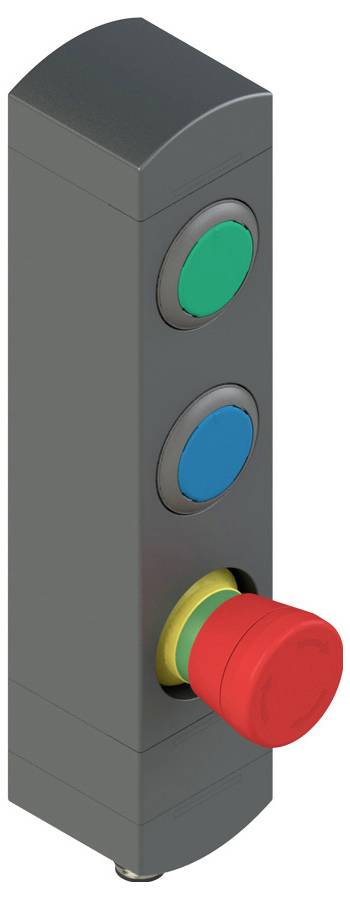

A vertical panel with three buttons: a green button, a blue button, and a large red emergency stop button at the bottom.

A vertical panel with three buttons: a green button, a blue button, and a large red emergency stop button at the bottom.

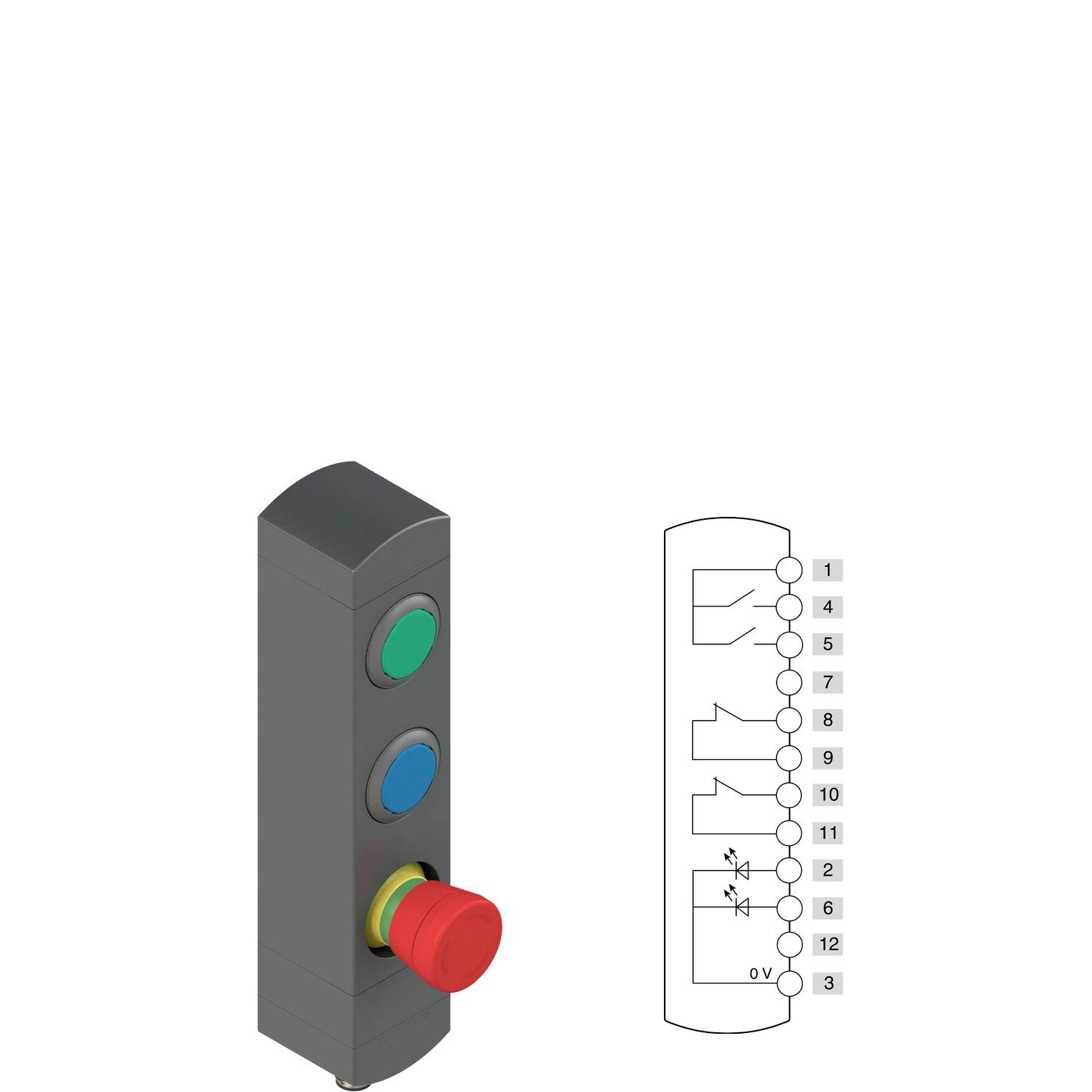

A control panel with green, blue, and red buttons is shown alongside a terminal diagram indicating connections numbered 1 to 12.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BN series command generator unit

Number of devices: 3 devices
Position 1: 1 green push-button 1NO
Position 2: 1 blue pushbutton 1NO
Position 3: 1 red emergency stop button, rotary unlocked, 2NC
IP65 to EN 60529 standard
Connection and Orientation : 12-pin M12 connector, Bottom
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Command encoder unit

Switch/button features: + kill switch

Print motif: EMERGENCY STOP

Connection: Connector

: IP65

Min. temperature: -25 °C

Max. temperature: 70 °C

Industrial packaging: Yes

Content: 1 pc(s)

Type: BN AC3ZA79

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3737433 Pizzato Elettrica BN AC3ZA79 Command encoder unit + kill switch EMERGENCY STOP 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3737433 Pizzato Elettrica BN AC3ZA79 Command encoder unit + kill switch EMERGENCY STOP 1 pc(s) Piece
