Pizzato Elettrica BN AC6ZA06 Command encoder unit EMERGENCY STOP 1 pc(s) Piece

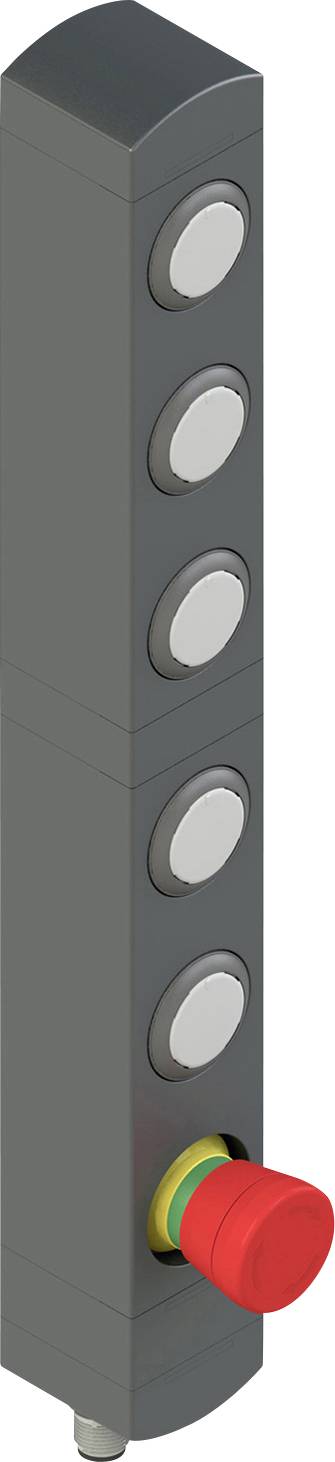

A vertical black rectangular panel featuring four grey round buttons and one prominent red button at the bottom with a green ring.

A vertical black rectangular panel featuring four grey round buttons and one prominent red button at the bottom with a green ring.

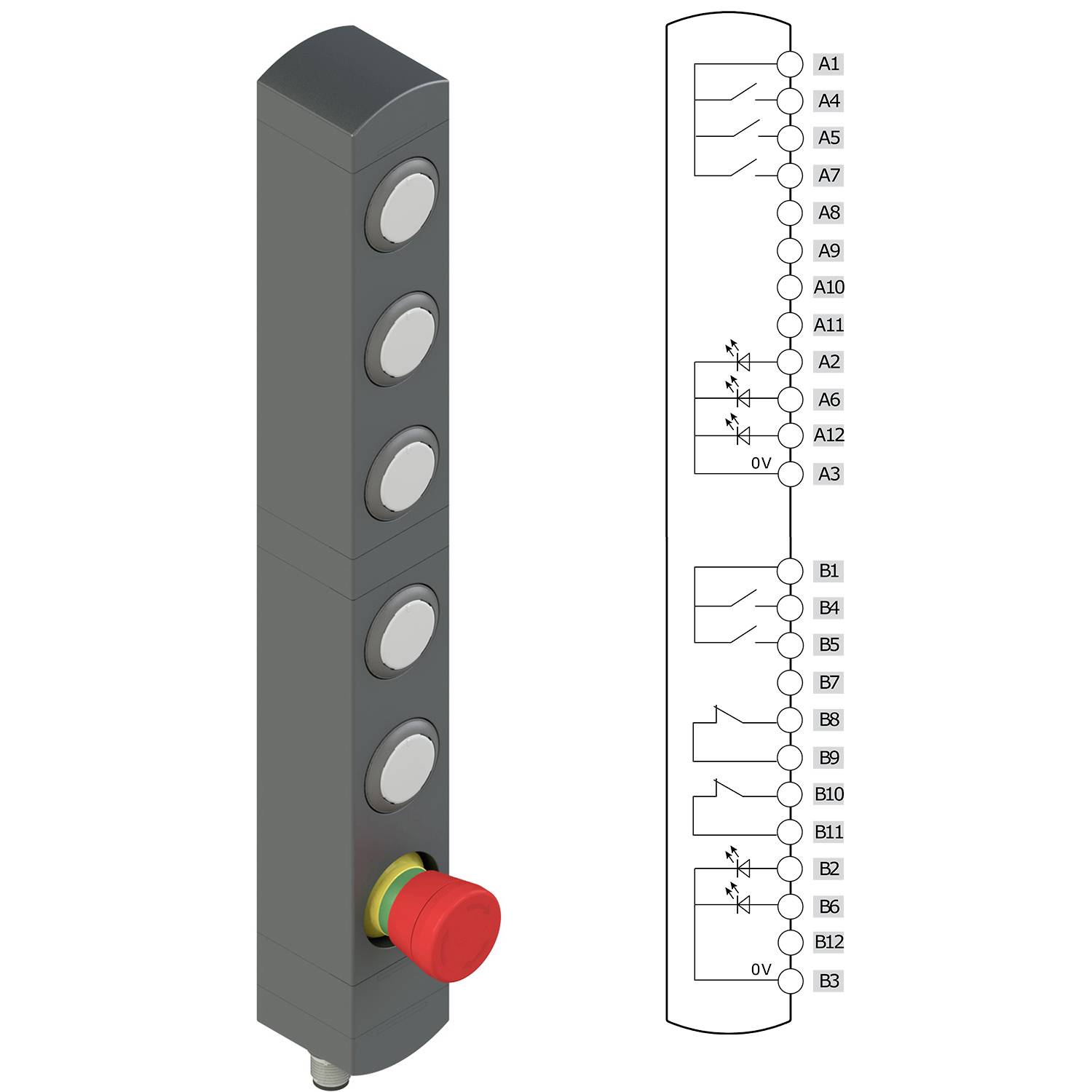

'Control panel with four grey buttons, an emergency stop button at the bottom, and a wiring diagram indicating connections A1 through A13 and B1 through B3.'

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BN series command generator unit

Number of devices: 6 devices
Position 1: 1 white push-button 1NO
Position 2: 1 white push-button 1NO
Position 3: 1 white push-button 1NO
Position 4: 1 white push-button 1NO
Position 5: 1 white push-button 1NO
Position 6: 1 red emergency stop button, rotary unlocked, 2NC
IP65 to EN 60529 standard
Connection and alignment: M12-plug connector, 12 pin-12 pin
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Command encoder unit

Print motif: EMERGENCY STOP

Connection: Connector

: IP65

Min. temperature: -25 °C

Max. temperature: 70 °C

Industrial packaging: Yes

Content: 1 pc(s)

Type: BN AC6ZA06

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3737442 Pizzato Elettrica BN AC6ZA06 Command encoder unit EMERGENCY STOP 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3737442 Pizzato Elettrica BN AC6ZA06 Command encoder unit EMERGENCY STOP 1 pc(s) Piece
