Pizzato Elettrica BN AC6ZA33 Command encoder unit + kill switch EMERGENCY STOP 1 pc(s) Piece

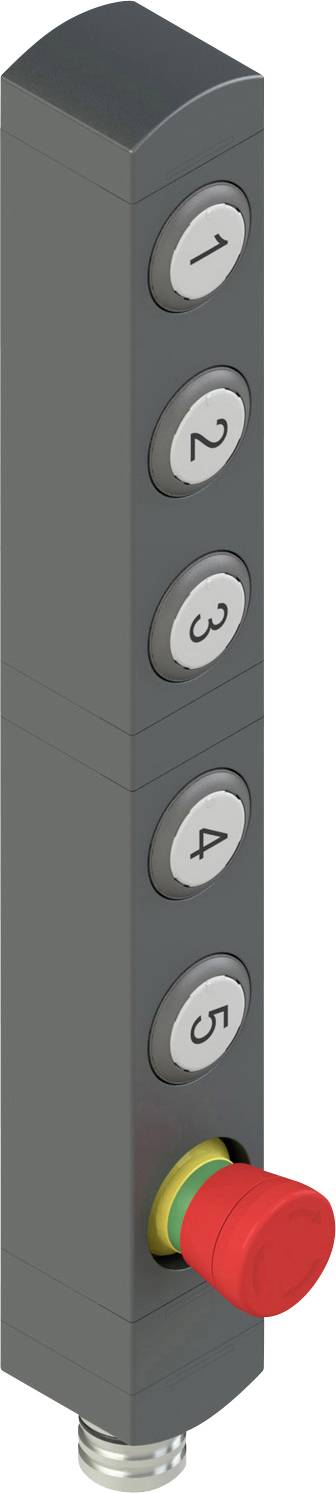

Elevator control panel with five numbered oval buttons from 1 to 5, and a red emergency stop button at the bottom.

Elevator control panel with five numbered oval buttons from 1 to 5, and a red emergency stop button at the bottom.

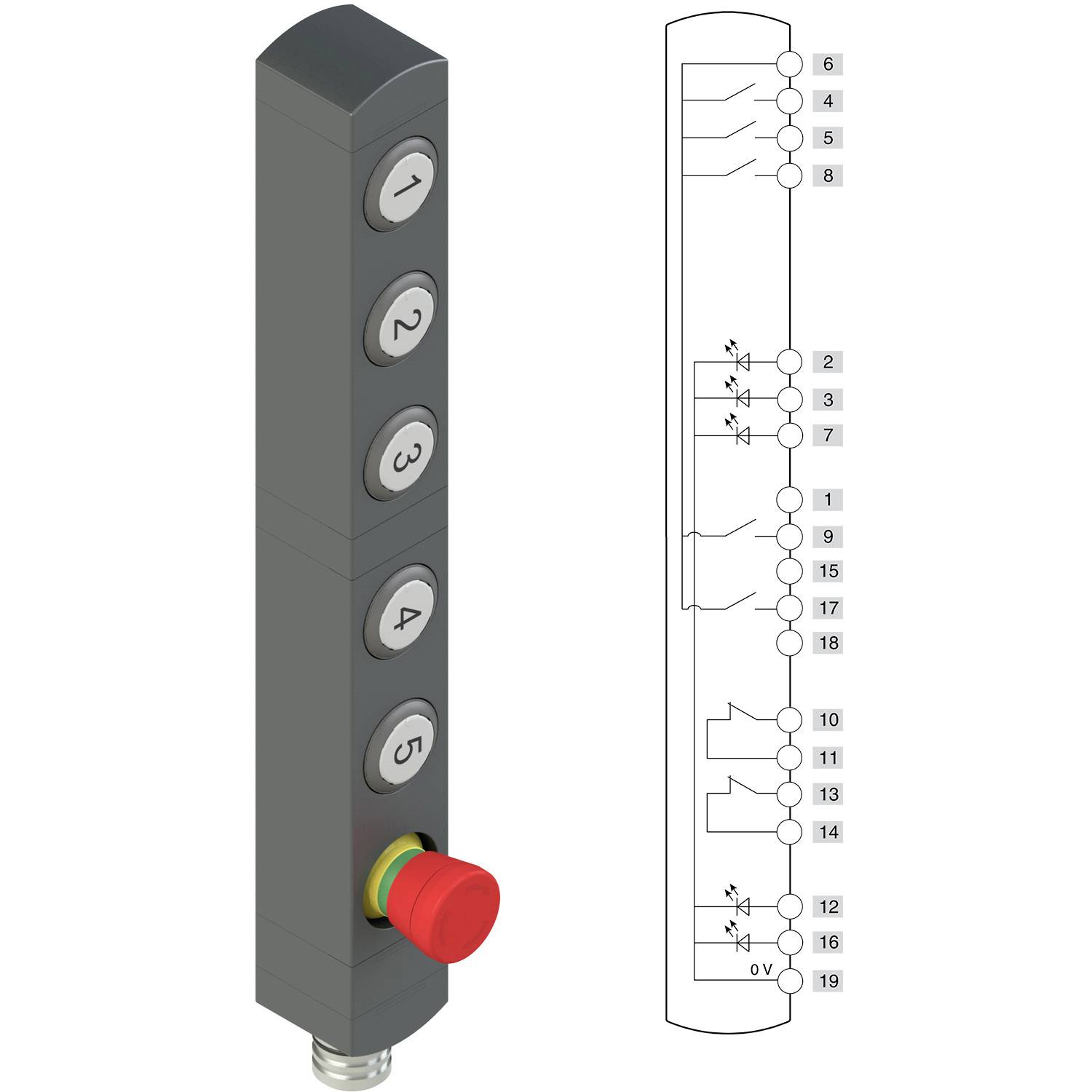

'A black vertical panel with five numbered buttons (1-5) and a red emergency stop button. Diagram shows pin connections with numbers.'

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BN series command generator unit

Number of devices: 6 devices
Position 1: 1 white push-button 1NO
Position 2: 1 white push-button 1NO
Position 3: 1 white push-button 1NO
Position 4: 1 white push-button 1NO
Position 5: 1 white push-button 1NO
Position 6: 1 red emergency stop button, rotary unlocked, 2NC
IP65 to EN 60529 standard
Connection and alignment: M23-plug connector, 19-pin
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: Command encoder unit

Switch/button features: + kill switch

Print motif: EMERGENCY STOP

Connection: Connector

: IP65

Min. temperature: -25 °C

Max. temperature: 70 °C

Industrial packaging: Yes

Content: 1 pc(s)

Type: BN AC6ZA33

RoHS-compliant: Yes
