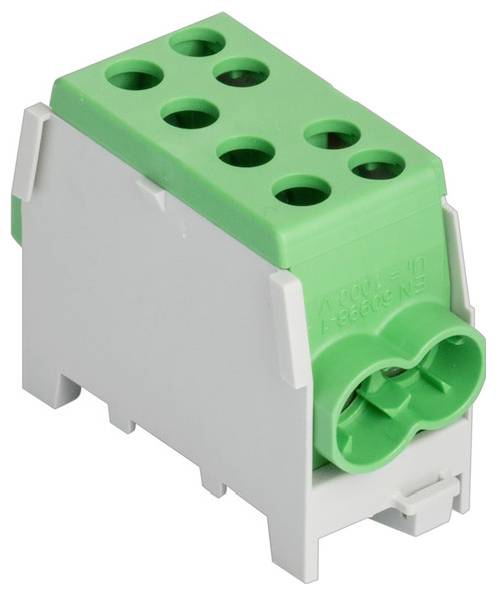

Pollmann Elektrotechnik 2080143 Tap terminal Screws 1 pc(s)

1x green, 1-pin, 2 inputs, 2 outputs, for quick mounting on 35 mm top-hat rails, modular design for 2-, 3- and multi-pin, can be connected in any way, series M2 mini-modular: The small size means that less space is needed in the distribution. It can now be realized 35/25 mm2-exits, where conventionally only 25/16 mm2 were possible. The minimodular stacking gives rise to an unprecedented variability. The color-coded clamps can be combined as required and removed with a tool. PV-suitability: Cable entries with insulating collars enable the use of the terminal up to 1000 V nominal voltage according to VDE 0613 / EN 60998. The clamps are finger-safe even without connected wires. For use with fine-stranded conductors the terminal depth is adapted to the usual lengths of wire end sleeves (HLAK 35... - 25 mm, HLAK 25... - 16 mm). The new terminals are VDE-approved for meter locations and distribution panels in accordance with VDE 0603-2.

This text is machine translated.
