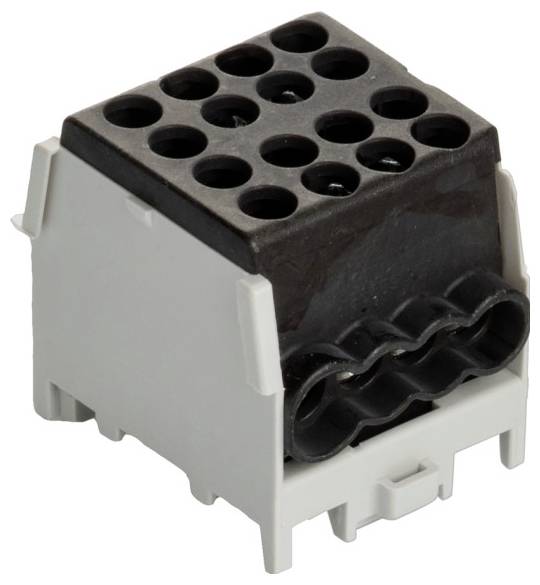

Pollmann Elektrotechnik 2080177 Tap terminal Screws 1 pc(s)

1x black, main line tap terminals 1/6 M2, modular mini-modules, mountable on 35 mm rail according to dim EN 60715, color coding according to valid wire colors, Ui = 1000 V, VDE certified, terminal block tin-plated. Suitable for aluminum conductor. The small size means that less space is needed in the distribution. It can now be realized 35/25 mm2-exits, where conventionally only 25/16 mm2 were possible. The minimodular stacking gives rise to an unprecedented variability. The color-coded clamps can be combined and removed again with a tool as required.PV suitability: Cable entries with insulating collars enable the use of the terminal up to 1000 V nominal voltage according to VDE 0613 / EN 60998. The clamps are finger-safe even without connected wires. For use with fine-wired conductors the terminal depth is adjusted to the usual lengths of wire-end sleeves (HLAK 35. - 25 mm, HLAK 25. - 16 mm). The new terminals are VDE approved 0603-2 for counter locations and distributions.

This text is machine translated.
