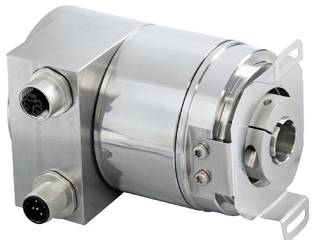

Posital Fraba Absolute Rotary encoder 1 pc(s) OCD-D2C1B-0012-B14V-H1B Blind hollow shaft Piece
Packaging type
Piece
Product type
Rotary encoder
Model
Absolute
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Rotary encoder
- Type
OCD-D2C1B-0012-B14V-H1B
- Model
Absolute
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
Connector cap
M12 plug (5-pin, A coded)
- Orientation (connectors)
Radial
- Impulses per cycle (max.)
4096
- Sleeve type
Blind hollow shaft
- Shaft type
Blind hole hollow shaft
- Shaft depth
30 mm
- Shaft Ø
14 mm
- Material (sleeve)
Stainless steel V2A
- Material (shaft)
Stainless steel V2A
- Enclosure material
Stainless steel V2A
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP66/IP67
- RoHS-compliant
Yes
- Content
1 pc(s)
- Accuracy ±
0.02°
